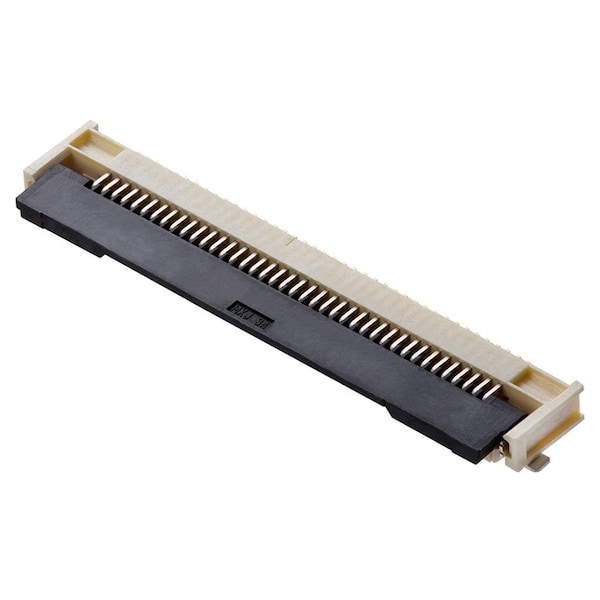

Conectores FFC y FPC Easy-On Conector FFC/FPC de 0.50mm de paso, serie FD19, ángulo recto, parte inferior.
| Item | FFC FPC Connector |
|---|---|
| Color | Beige |
| Max. Voltage | 50V AC/DC |
| Series | 505110 |
| Material | Liquid Crystal Polymer |
| Sub-Category | Connectors |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 0.5 mm |
| Contact Plating Thickness | 0.051 µm |
| Number of Contacts | 53 |
| Number of Rows | 1 |
| Contact Finish | Gold |
| Current Rating | 0.5 A |
| Terminal Finish | Gold over Nickel |
| Mated Height | 1.9 mm |
| Wire/Cable Type | FFC, FPC |
| Contact Position | Bottom |
| Actuator Type | Front Flip |
| Polarized to PCB | Yes |
| PCB Locator | No |
| Current - Maximum per Contact | 0.5 A |
| Durability (mating cycles max) | 20 |
| Material - Metal | Phosphor Bronze |
| Product Name | Easy-On |
| Material - Plating Termination | Gold |
| Plating min - Mating | 0.051 um |
| PCB Retention | Yes |
| PCB Mounting | Surface Mount |
| Material - Resin | Liquid Crystal Polymer |
| Stackable | No |
| Material - Plating Mating | Gold |
| Pitch - Mating Interface | 0.5 mm |
| Circuits (Loaded) | 53 |
| Voltage - Maximum | 50 V |
| Temperature Range - Operating | -40° to +105°C |
| Orientation | Right Angle |
| Package Quantity | 1 |
