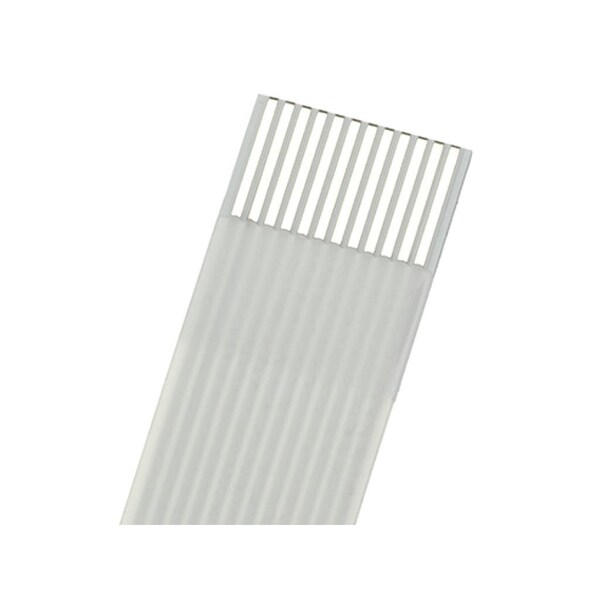

Ffc / Fpc Jumper Cables Ffc 0.50 Type A 14Ckts Lgt 51
| Series | 15166 |
|---|---|
| Cable Length | 0.051 m |
| Wire/Cable Type | Flat Flex Cable |
| Pitch - Mating Interface | 0.5 mm |
| Voltage - Maximum | 60 V |
| Product Name | Premo-Flex FFC Jumper |
| Temperature Range - Operating | -40 to 105 deg C |
| Circuits (Loaded) | 14 |
| Circuits (maximum) | 14 |
| Current - Maximum per Contact | 0.5 A |
| Material - Plating Mating | Tin |
| Contact Layout Type | A |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
