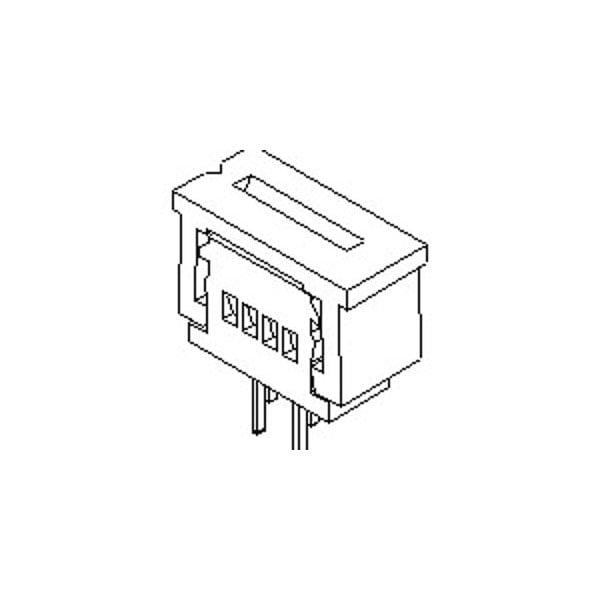

Ffc/Fpc Connector, 11 Contact(S), 1 Row(S), Female, Straight, 0.049 Inch Pitch, Solder Terminal,
| Color | Natural |
|---|---|
| Item | FFC FPC Connector |
| Max. Voltage | 200 V |
| Series | 5597 |
| Standards | UL E29179 |
| Material | Polyester |
| Hole Center to Center | 1.25 mm |
| Max. Temp. | 80 deg C |
| Sub-Category | Connectors |
| Contact Finish | Tin-Bismuth Plated |
| Terminal Finish | Tin-Bismuth Plated |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 1 |
| Current Rating | 1 A |
| Contact Plating Thickness | 1.016 µm |
| Number of Contacts | 11 |
| Plating min - Mating | 1.016 um |
| Wire/Cable Type | FFC, FPC |
| Flammability | 94 V to 0 |
| Product Name | Easy-On |
| PCB Locator | No |
| Current - Maximum per Contact | 1 A |
| Material - Plating Termination | Tin-Bismuth |
| Temperature Range - Operating | -20° to +80°C |
| Stackable | No |
| UL | E29179 |
| Pitch - Mating Interface | 1.25 mm |
| Orientation | Vertical |
| Actuator Type | Slider |
| Material - Plating Mating | Tin-Bismuth |
| Polarized to PCB | No |
| Material - Resin | Polyester |
| Material - Metal | Phosphor Bronze |
| PCB Mounting | Through Hole |
| PCB Retention | None |
| Circuits (Loaded) | 11 |
| PC Tail Length | 3.5 mm |
| Mated Height | 7.5 mm |
| Durability (mating cycles max) | 30 |
| Package Quantity | 1 |
