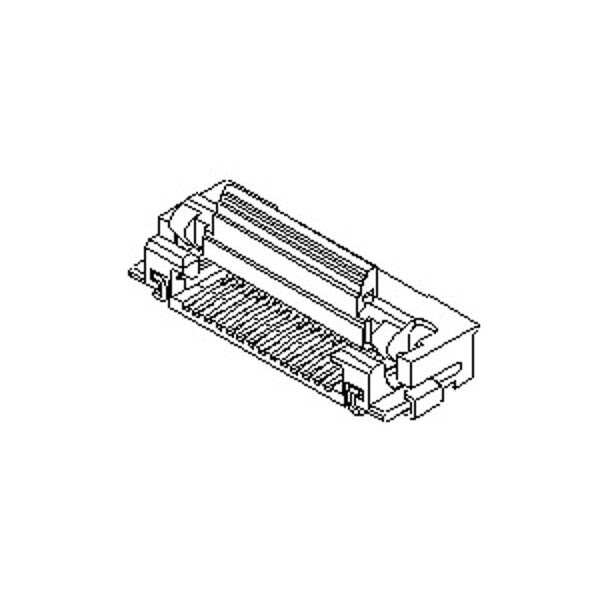

Conector FFC/FPC, 20 contactos, 1 fila, ángulo recto, paso de 0.020 pulgadas, terminal de montaje en superficie.
| Series | 52892 |
|---|---|
| Polarized to PCB | No |
| Material - Plating Termination | Gold |
| Contact Position | Bottom |
| Product Name | Easy-On |
| PCB Locator | No |
| Orientation | Right Angle |
| Pitch - Mating Interface | 0.5 mm |
| Actuator Type | Front Flip |
| Temperature Range - Operating | -30° to +85°C |
| Material - Plating Mating | Gold |
| Durability (mating cycles max) | 20 |
| Voltage - Maximum | 50 V |
| Mated Height | 2 mm |
| PCB Retention | Yes |
| Circuits (Loaded) | 20 |
| Stackable | No |
| Material - Metal | Phosphor Bronze |
| PCB Mounting | Surface Mount |
| Wire/Cable Type | FFC, FPC |
| Current - Maximum per Contact | 0.5 A |
| Package Quantity | 1 |
