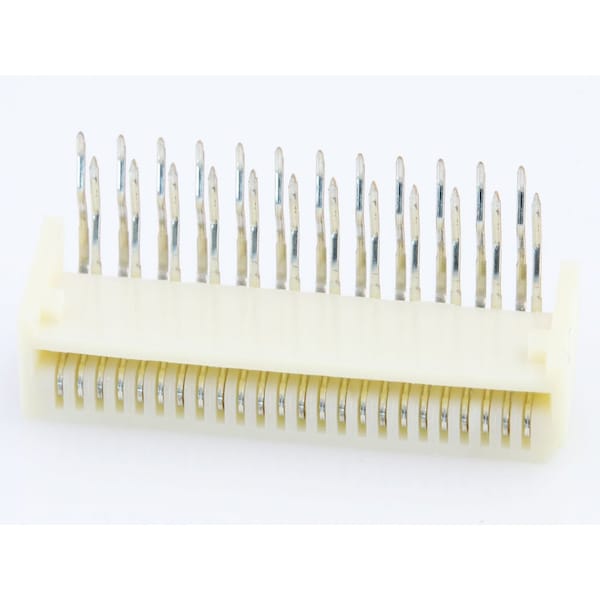

Conector FFC/FPC, 24 contactos, 1 fila, hembra, ángulo recto, paso de 0.039 pulgadas, terminal de soldadura.
| Item | FFC FPC Connector |
|---|---|
| Color | Natural |
| Max. Voltage | 50 V |
| Series | 52807 |
| Standards | UL E29179 |
| Sub-Category | Connectors |
| Max. Temp. | 80 deg C |
| Hole Center to Center | 1 mm |
| Material | High Temperature Thermoplastic |
| Contact Plating Thickness | 0.914 µm |
| Contact Finish | Tin Plated |
| Terminal Finish | Tin Plated |
| Number of Contacts | 24 |
| Current Rating | 0.2 A, 0.4 A, 0.5 A |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 1 |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Actuator Type | Non-ZIF |
| PC Tail Length | 3.2 mm |
| Pitch - Mating Interface | 1 mm |
| PCB Retention | None |
| Flammability | 94 V to 0 |
| Current - Maximum per Contact | 0.2 A, 0.4 A, 0.5 A |
| Polarized to PCB | Yes |
| Mated Height | 3.6 mm |
| Orientation | Right Angle |
| Contact Position | Top |
| Material - Resin | High Temperature Thermoplastic |
| Circuits (Loaded) | 24 |
| UL | E29179 |
| Material - Metal | Phosphor Bronze |
| Stackable | No |
| Plating min - Mating | 0.914 um |
| Temperature Range - Operating | -20° to +80°C |
| PCB Mounting | Through Hole - Kinked Pin |
| Wire/Cable Type | FFC, FPC |
| Product Name | Easy-On |
| Package Quantity | 1 |
