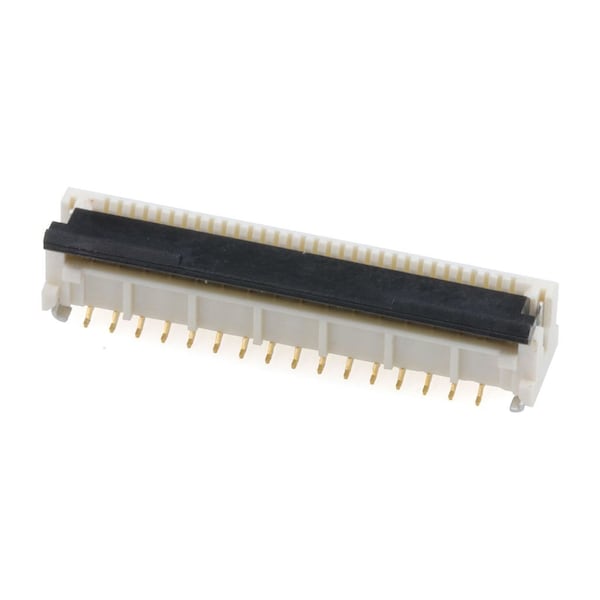

Conector FFC/FPC, 32 contactos, 1 fila, hembra, recto, paso de 0.020 pulgadas, montaje en superficie.
| Color | White |
|---|---|
| Item | FFC FPC Connector |
| Max. Voltage | 50V AC/DC |
| Series | 501951 |
| Standards | UL E29179 |
| Material | Liquid Crystal Polymer |
| Sub-Category | Connectors |
| Max. Temp. | 125 deg C |
| Hole Center to Center | 0.5 mm |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.102 µm |
| Number of Contacts | 32 |
| Contact Finish | Gold Plated |
| Terminal Finish | Gold Plated |
| Current Rating | 0.5 A |
| Number of Rows | 1 |
| Material - Plating Mating | Gold |
| Mated Height | 4.05 mm |
| Pitch - Mating Interface | 0.5 mm |
| Stackable | No |
| Material - Resin | Liquid Crystal Polymer |
| Circuits (Loaded) | 32 |
| Durability (mating cycles max) | 20 |
| PCB Retention | Yes |
| Material - Plating Termination | Gold |
| Temperature Range - Operating | -40° to +125°C |
| Wire/Cable Type | FFC, FPC |
| Plating min - Mating | 0.102 um |
| UL | E29179 |
| Product Name | Easy-On |
| Orientation | Vertical |
| Flammability | 94 V to 0 |
| Material - Metal | Copper Alloy |
| Actuator Type | Front Flip |
| Polarized to PCB | No |
| PCB Mounting | Surface Mount |
| PCB Locator | No |
| Voltage - Maximum | 50 V |
| Current - Maximum per Contact | 0.5 A |
| Package Quantity | 1 |
