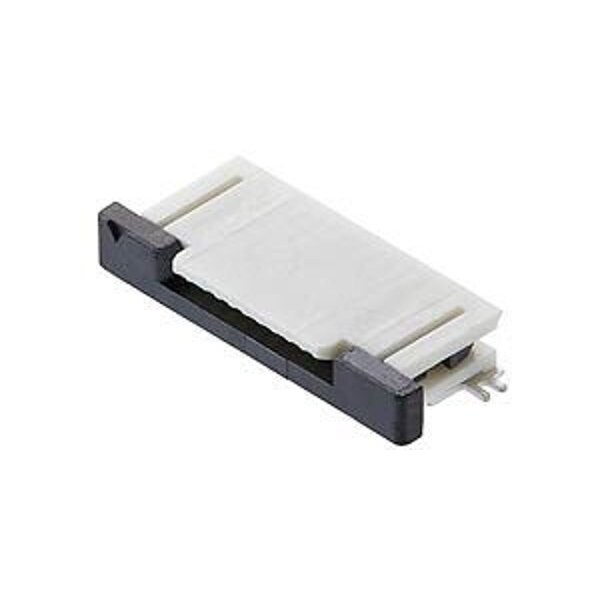

Ffc/Fpc Connector, 38 Contact(S), 1 Row(S), Female, Right Angle, 0.020 Inch Pitch, Surface Mount
| Series | 54104 |
|---|---|
| Voltage - Maximum | 50 V |
| PCB Mounting | Surface Mount |
| Wire/Cable Type | FFC, FPC |
| PC Tail Length | 2 mm |
| Temperature Range - Operating | -40° to +85°C |
| UL | E29179 |
| Circuits (Loaded) | 38 |
| Material - Resin | Nylon |
| Product Name | Easy-On |
| Orientation | Right Angle |
| Current - Maximum per Contact | 0.5 A |
| Stackable | No |
| Actuator Type | Slider |
| Material - Metal | Phosphor Bronze |
| CSA | LR19980 |
| Flammability | 94 V to 0 |
| Material - Plating Mating | Tin-Bismuth |
| Mated Height | 2 mm |
| Polarized to PCB | Yes |
| Contact Position | Top |
| Durability (mating cycles max) | 20 |
| PCB Retention | None |
| PCB Locator | No |
| Pitch - Mating Interface | 0.5 mm |
| Color - Resin | Natural |
| Material - Plating Termination | Tin-Bismuth |
| Package Quantity | 1 |
