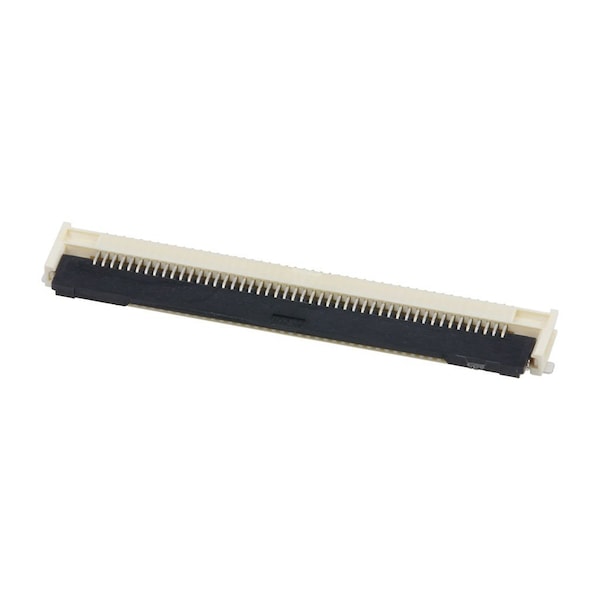

Conector FFC/FPC, 48 contactos, 1 fila, hembra, ángulo recto, paso de 0.020 pulgadas, montaje en superficie.
| Color | Beige |
|---|---|
| Item | FFC FPC Connector |
| Max. Voltage | 50V AC/DC |
| Series | 505110 |
| Hole Center to Center | 0.5 mm |
| Max. Temp. | 105 deg C |
| Material | Liquid Crystal Polymer |
| Sub-Category | Connectors |
| Current Rating | 0.5 A |
| Terminal Finish | Gold over Nickel |
| Number of Rows | 1 |
| Number of Contacts | 48 |
| Contact Finish | Gold |
| Contact Plating Thickness | 0.051 µm |
| Package Quantity | 1 |
