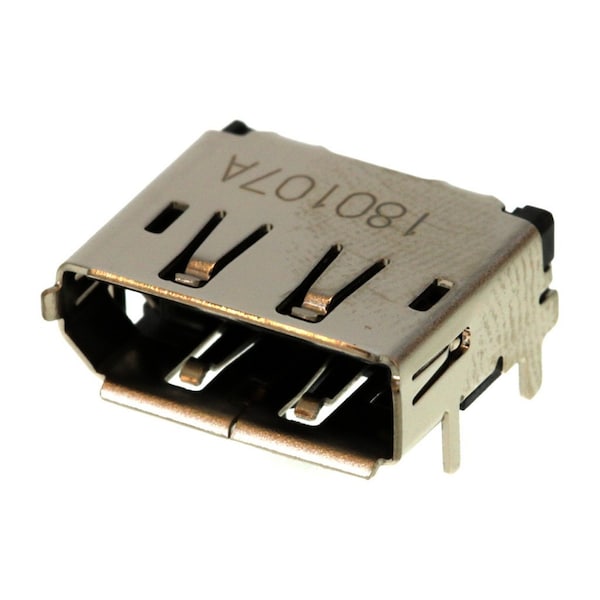

El conector receptáculo de DisplayPort FY07 de Molex es ideal para integrar en dispositivos electrónicos de alta tecnología. Cumple con los estándares de calidad y rendimiento para una conectividad confiable.
| Grounding to Panel | Yes |
|---|---|
| Termination Interface: Style | Surface Mount |
| Polarized to PCB | Yes |
| PCB Locator | Yes |
| Process Temperature max. C | 250 |
| Polarized to Mating Part | Yes |
| Circuits (maximum) | 20 |
| Color - Resin | Black |
| Orientation | Right Angle |
| Keying to Mating Part | Yes |
| Plating min - Termination | 1.016µm |
| Number of Rows | 2 |
| Circuits (Loaded) | 20 |
| Max. Cycles at Max. Process Temperature | 1 |
| Current - Maximum per Contact | 0.5 A |
| Material - Plating Mating | Gold |
| Plating min - Mating | 0.762µm |
| Material - Metal | Copper Alloy |
| Flammability | 94V-0 |
| Pitch - Mating Interface | 0.5 mm |
| Gender | Female |
| Lock to Mating Part | Yes |
| Shielded | Yes |
| PCB Retention | Yes |
| Ports | 1 |
| Voltage - Maximum | 40 V |
| Pitch - Termination Interface | 0.5 mm |
| Material - Plating Termination | Matte Tin |
| Material - Resin | High Temperature Thermoplastic |
| Duration at Max. Process Temperature (seconds) | 10 |
| Panel Mount | Without Flange |
| Temperature Range - Operating | -20° to +85°C |
| UL | E29179 |
| Package Quantity | 1 |
