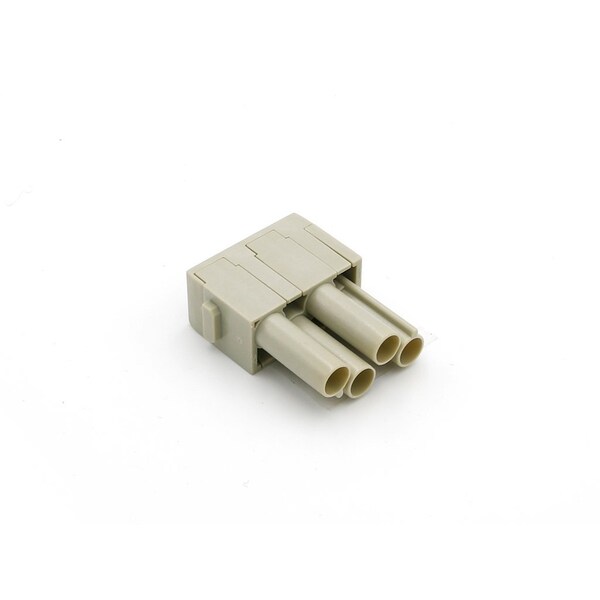

Gwconnect Crimp Contact Insert, Female, 4-Pole, 40A, For Crimp Contact, Size 34.2X14.60
| Series | 93601 |
|---|---|
| Number of Rows | 2 |
| Standard | CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Component Size | «34.2» x 14.6» |
| Insert Series | S-M40/3/4 |
| Voltage - Maximum | 830V |
| Polarized to Mating Part | Yes |
| Product Name | GWconnect |
| Gender | Female |
| UL | E249674 |
| Current - Maximum per Contact | 40 A |
| Durability (mating cycles max) | 500 |
| Poles | 4 |
| Component Type | Inserts - Crimp Contact |
| Material - Insert | Polycarbonate |
| Insert Color | Gray |
| Temperature Range - Operating | -40° to +125°C |
| Package Quantity | 1 |
