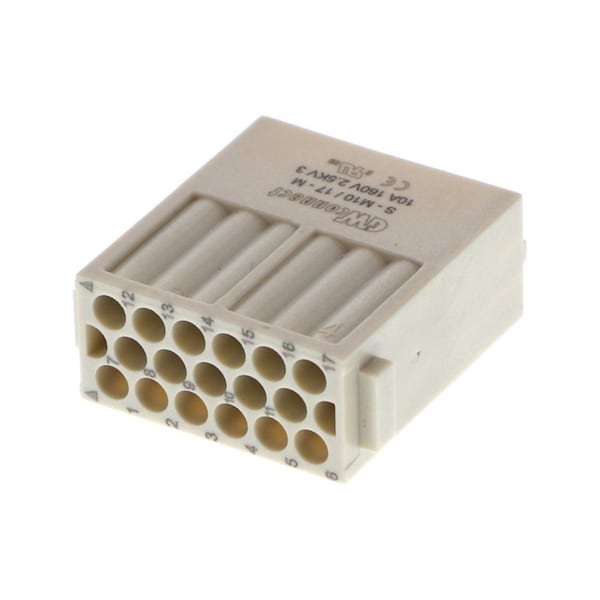

Gwconnect Crimp Contact Insert, Male, 17-Pole, 10A, For Turned Crimp Contact, Size 34.2X14.6
| Series | 93601 |
|---|---|
| Number of Rows | 3 |
| Voltage - Maximum | 160V |
| Insert Color | Gray |
| Material - Insert | Polycarbonate |
| Polarized to Mating Part | Yes |
| UL | E249674 |
| Durability (mating cycles max) | 500 |
| Component Type | Inserts - Crimp Contact |
| Standard | CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Poles | 17 |
| Gender | Male |
| Current - Maximum per Contact | 10 A |
| Product Name | GWconnect |
| Component Size | «34.2» x 14.6» |
| Temperature Range - Operating | -40° to +125°C |
| Insert Series | S-M10/17 |
| Package Quantity | 1 |
