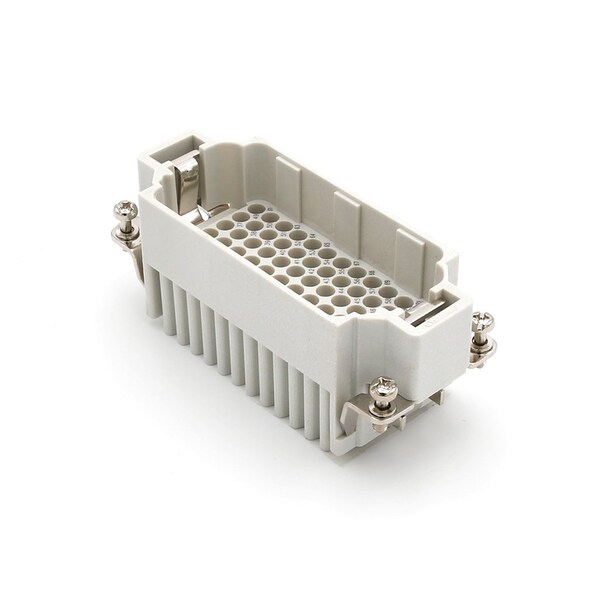

Gwconnect Crimp Contact Insert, Male, 72-Pole, 10A, Numbered 1-72, For Turned Crimp Contact
| Color | Gray |
|---|---|
| Series | 93601 |
| Max. Voltage | 250 V |
| Connector Type | Male |
| Standards | CSA Certified; UL E249674 |
| Material | Polycarbonate |
| Number of Rows | 6 |
| Current Rating | 10 A |
| Max. Temp. | 125 deg C |
| Flammability Rating | UL 94 V-0 |
| Poles | 72 |
| Component Type | Inserts - Crimp Contact |
| Insert Series | S-DD |
| Standard | CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Polarized to Mating Part | Yes |
| Product Name | GWconnect |
| Durability (mating cycles max) | 500 |
| Current - Maximum per Contact | 10 A |
| Temperature Range - Operating | -40° to +125°C |
| Insert Color | Gray |
| UL | E249674 |
| CSA | 256883 |
| Component Size | 16B «77X27» |
| Material - Insert | Polycarbonate |
| Package Quantity | 1 |
