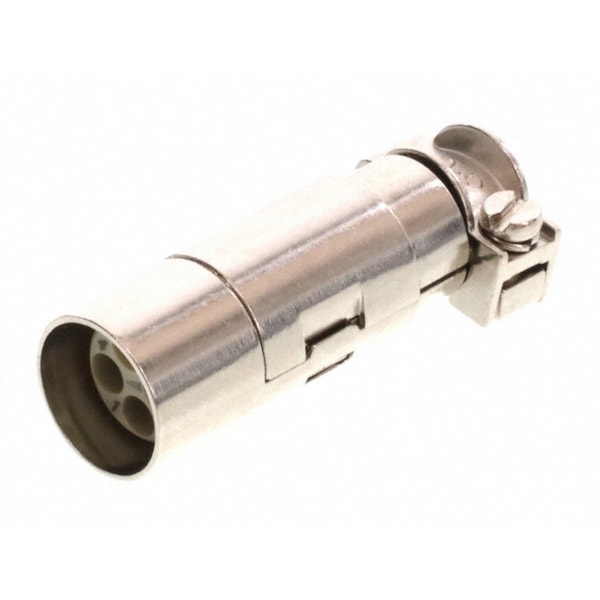

Gwconnect S-Cx/4 Shielded Circular Bus Connector, Male, 4-Pole
| Series | 93601 |
|---|---|
| Current - Maximum per Contact | 10 A |
| Polarized to Mating Part | Yes |
| Material - Shield/Shell | Zinc Alloy-Nickel Plated |
| Voltage | EN 61984: 50V 0.8kV 3 |
| Poles | 4 |
| Standard | CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Component Type | Circular BUS Connector |
| Gender | Male |
| Temperature Range - Operating | -40° to +85°C |
| Durability (mating cycles max) | 500 |
| Product Name | GWconnect |
| Wire Size (AWG) | 26-14 |
| Material - Insert | Polycarbonate |
| Package Quantity | 1 |
