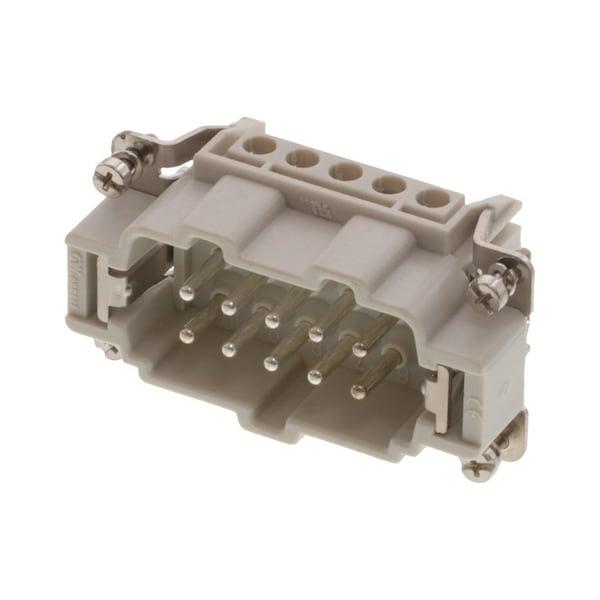

Gwconnect Screw Terminal Insert, Male, 10-Pole, 16A, With Wire Protection, Silver (Ag) Plated
| Wire Range | 20 to 14 AWG |
|---|---|
| Series | 93601 |
| Connection Type | Male |
| Max. Voltage | 500 V |
| Connection Material | Copper Alloy |
| Standards | CSA Listed; UL Listed |
| Max. Temp. | 125 deg C |
| Standard | CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Wire Protection | Yes |
| Wire Size (AWG) | 14-20 |
| Current - Maximum per Contact | 16 A |
| Product Name | GWconnect |
| Material - Insert | Polycarbonate |
| Component Type | Inserts - Screw Terminal |
| Polarized to Mating Part | Yes |
| Tightening Test Torque | 0.5 N-m |
| CSA | 256883 |
| Material - Plating | Silver |
| Durability (mating cycles max) | 700 |
| UL | E249674 |
| Temperature Range - Operating | -40° to +125°C |
| Poles | 10 |
| Insert Color | Grey |
| Stripping Length | 7 mm |
| Number of Rows | 2 |
| Insert Series | S-E |
| Component Size | 10B «57X27» |
| Package Quantity | 1 |
