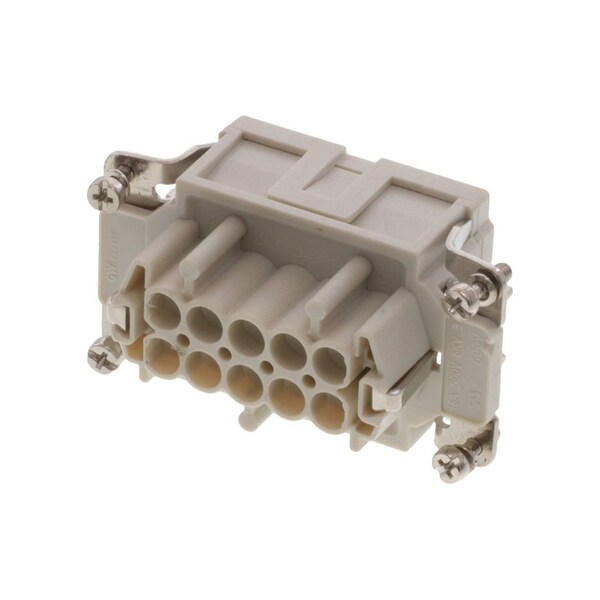

Conector de resorte de terminales Gwconnect, hembra, 10 polos, 16A, contacto chapado en plata (Ag), tamaño 10B.
| Wire Range | 26 to 14 AWG |
|---|---|
| Max. Voltage | 500 V |
| Connection Material | Copper Alloy |
| Standards | CSA Listed; UL Listed |
| Max. Temp. | 125 deg C |
| Connection Type | Female |
| Poles | 10 |
| UL | E249674 |
| Component Type | Inserts - Spring Terminal |
| Series | 93601 |
| Durability (mating cycles max) | 500 |
| Current - Maximum per Contact | 16 A |
| Component Size | 10B «57X27» |
| Material - Insert | Polycarbonate |
| Material - Plating | Silver |
| Temperature Range - Operating | -40° to +125°C |
| Stripping Length | 9.00-11.00mm |
| Insert Series | S-ES |
| Insert Color | Grey |
| Number of Rows | 2 |
| Product Name | GWconnect |
| Wire Size (AWG) | 14-26 |
| Polarized to Mating Part | Yes |
| CSA | 256883 |
| Standard | CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Package Quantity | 1 |
