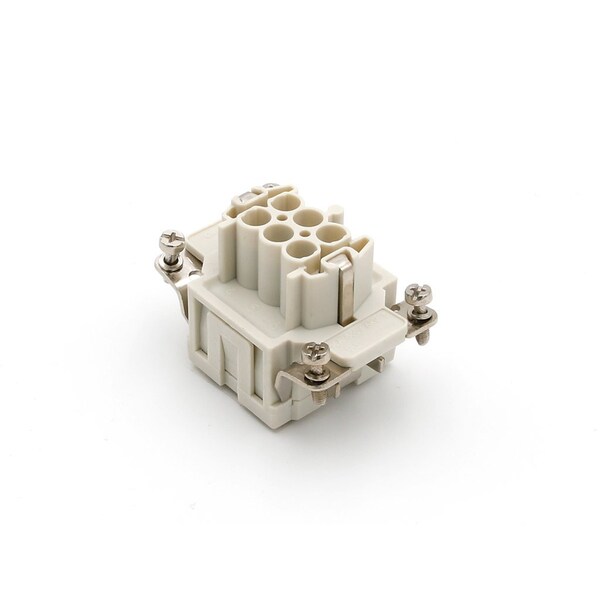

Gwconnect Spring Terminal Insert, Female, 6-Pole, 16A, Silver (Ag) Plated Contact, Size 6B 4
| Wire Range | 26 to 14 AWG |
|---|---|
| Connection Material | Copper Alloy |
| Standards | CSA Listed; UL Listed |
| Max. Voltage | 500 V |
| Max. Temp. | 125 deg C |
| Connection Type | Female |
| Current - Maximum per Contact | 16 A |
| Series | 93601 |
| Durability (mating cycles max) | 500 |
| Material - Insert | Polycarbonate |
| Standard | CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Product Name | GWconnect |
| Insert Series | S-ES |
| Component Type | Inserts - Spring Terminal |
| Material - Plating | Silver |
| Insert Color | Grey |
| UL | E249674 |
| Polarized to Mating Part | Yes |
| Poles | 6 |
| Component Size | 6B «44x27» |
| CSA | 256883 |
| Temperature Range - Operating | -40° to +125°C |
| Wire Size (AWG) | 14-26 |
| Number of Rows | 2 |
| Stripping Length | 9.00-11.00mm |
| Package Quantity | 1 |
