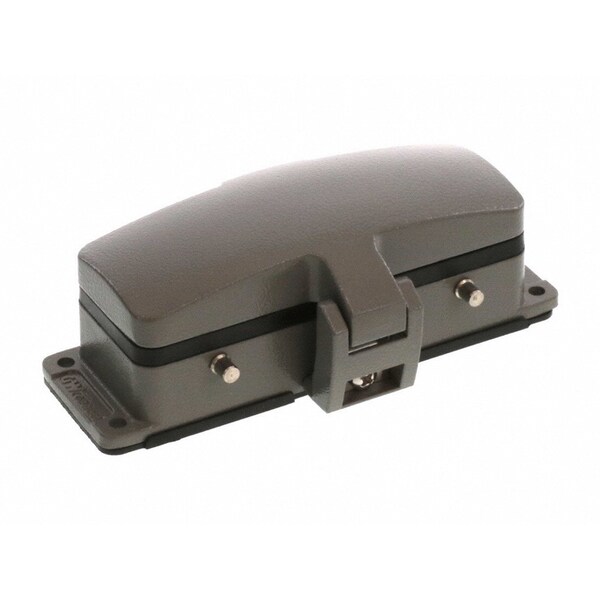

Gwconnect Std-Standard, Doble Palanca de Montaje en Mamparo, Carcasa de Aluminio Fundido
| Mounting Style | Bulkhead |
|---|---|
| Series | 93601 |
| Housing Color | Grey RAL 7037 |
| Type | STD |
| IP Rating | IP66 |
| Voltage - Maximum | 500 V |
| Housing Coating | Polyester Powder |
| Material - Housing | Die-cast Aluminum |
| Product Name | GWconnect |
| Material - Gasket | NBR |
| Lock to Mating Part | Yes |
| Number of Pegs | 4 |
| Material - Peg | Stainless Steel |
| Material - Cover | Die-cast Aluminum |
| Cover Color | Grey RAL 7037 |
| UL | E249674 |
| CSA | 256883 |
| Component Type | Bulkhead Housing |
| Cover Coating | Polyester Powder |
| Component Size | 24B «104X27» |
| Standard | ANSI, ANSI 50 E C22.2 No.94-1-2 61984, CSA, EN, UL, UL 50 |
| Package Quantity | 1 |
