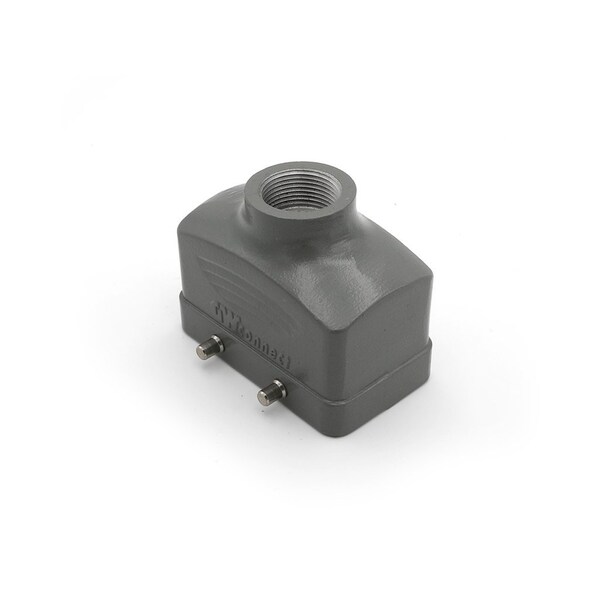

Gwconnect Std-Standard, Double Lever Hood, Die-Cast Aluminum
| Color | Gray |
|---|---|
| Series | 93601 |
| Max. Voltage | 500 V |
| Finish | Polyester Powder Coated |
| Type | STD |
| IP Rating | IP66 |
| Material | Aluminum |
| Standards | CSA Certified, UL E249674 |
| Hood Coating | Polyester Powder |
| Thread Type | Pg |
| Entry Location | Top |
| CSA | 256883 |
| Product Name | GWconnect |
| Component Size | 10B «57X27» |
| Material - Hood | Die-cast Aluminum |
| Material - Peg | Stainless Steel |
| Lock to Mating Part | Yes |
| Component Type | Double Lever Hood |
| Hood Color | GREY RAL 7037 |
| Thread Size | Pg16 |
| Number of Pegs | 4 |
| UL | E249674 |
| Standard | ANSI, ANSI 50 E C22.2 No.94-1-2 61984, CSA, EN, UL, UL 50 |
| Package Quantity | 1 |
