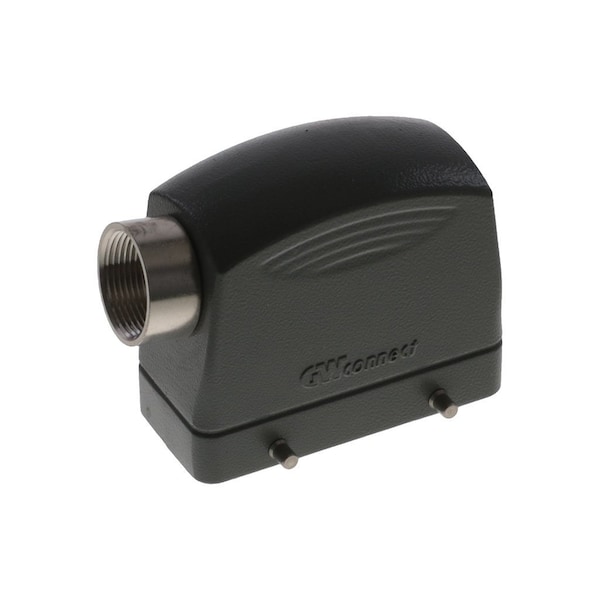

Gwconnect Std-Standard, Double Lever Hood, Die-Cast Aluminum
| Series | 93601 |
|---|---|
| Type | STD |
| IP Rating | IP66 |
| Material - Peg | Stainless Steel |
| Thread Type | Pg |
| Thread Size | Pg21 |
| Hood Color | GREY RAL 7037 |
| Component Type | Double Lever Hood |
| Lock to Mating Part | Yes |
| Voltage - Maximum | 500 V |
| Hood Coating | Polyester Powder |
| Entry Location | Side |
| Number of Pegs | 4 |
| CSA | 256883 |
| Product Name | GWconnect |
| Component Size | 16B «77X27» |
| Standard | ANSI, ANSI 50 E C22.2 No.94-1-2 61984, CSA, EN, UL, UL 50 |
| UL | E249674 |
| Material - Hood | Die-cast Aluminum |
| Package Quantity | 1 |
