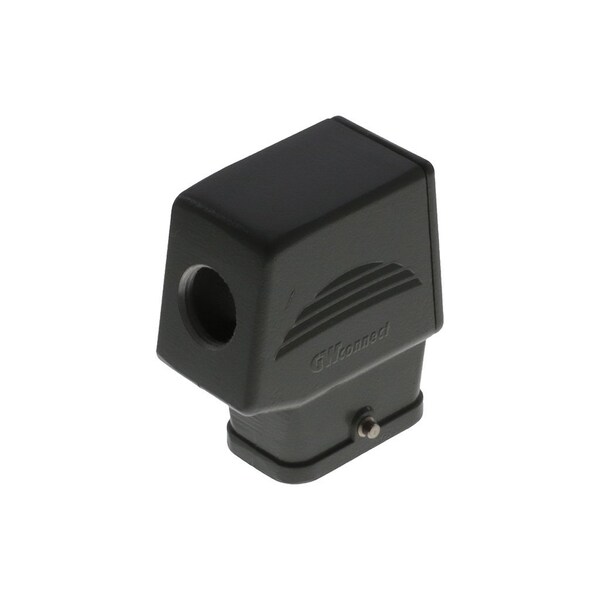

Conector estándar Gwconnect Std, con capucha de palanca única, fabricada en aleación de aluminio fundido. Ideal para aplicaciones industriales y electrónicas de alta calidad.
| Series | 93601 |
|---|---|
| Type | STD |
| IP Rating | IP66, IP69 |
| Entry Location | Side |
| Number of Pegs | 2 |
| Component Type | Single Lever Hood |
| Thread Type | Metric |
| UL | E249674 |
| Hood Color | GREY RAL 7037 |
| Material - Peg | Die-cast Aluminum |
| Hood Coating | Polyester Powder |
| Thread Size | M20 |
| Component Size | «32X13» |
| Product Name | GWconnect |
| Material - Hood | Die-cast Aluminum |
| Standard | ANSI, ANSI 50 E C22.2 No.94-1-2 61984, CSA, EN, UL, UL 50 |
| Cable Diameter | 6 to 14 mm |
| CSA | 256883 |
| Lock to Mating Part | Yes |
| Package Quantity | 1 |
