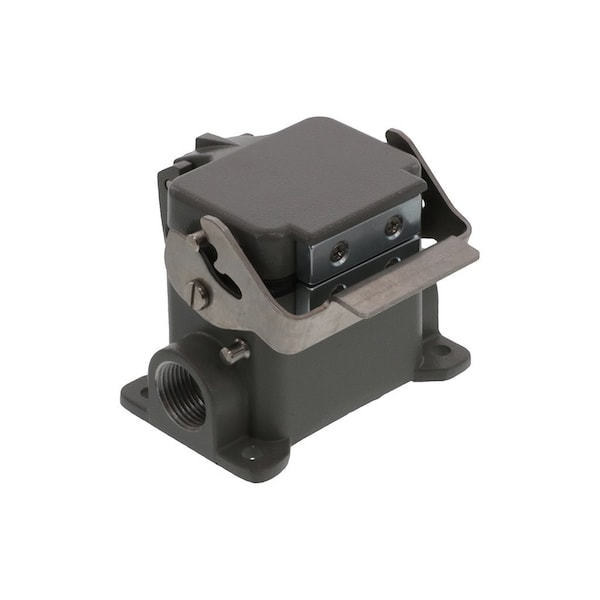

Gwconnect Std-Standard, Carcasa de Montaje en Superficie de Palanca Única, de Aluminio Fundido.
| Mounting Style | Surface Mount |
|---|---|
| Housing Color | Grey RAL 7037 |
| Series | 93601 |
| Material - Cover | Die-cast Aluminum |
| Standard | ANSI, ANSI 50 E C22.2 No.94-1-2 61984, CSA, EN, UL, UL 50 |
| Component Type | Single Lever SMT Housing |
| Voltage - Maximum | 500 V |
| Material - Lever | Stainless Steel |
| Material - Housing | Die-cast Aluminum |
| Housing Coating | Polyester Powder |
| Cover Color | Grey RAL 7037 |
| Thread Size | M20x2 |
| Thread Type | Metric |
| IP Rating | IP66 |
| Lock to Mating Part | Yes |
| Cover Coating | Polyester Powder |
| Product Name | GWconnect |
| CSA | 256883 |
| Component Size | 6B «44x27» |
| Material - Gasket | NBR |
| Number of Levers | 1 |
| UL | E249674 |
| Type | STD |
| Package Quantity | 1 |
