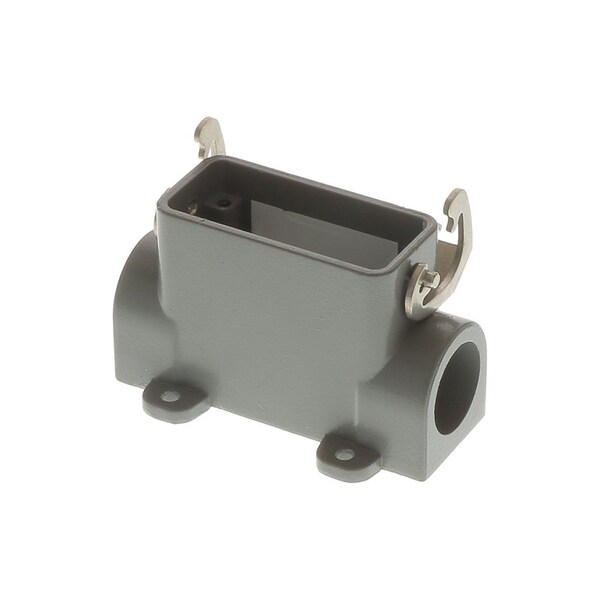

Caja de montaje superficial estándar Gwconnect Std, con palanca única y fabricada en aluminio fundido. Ideal para aplicaciones industriales y comerciales.
| Mounting Style | Surface Mount |
|---|---|
| Housing Color | Grey RAL 7037 |
| Standards | CSA Certified, UL E249674 |
| Color | Gray |
| Material | Aluminum |
| Finish | Polyester Powder Coated |
| Max. Voltage | 500 V |
| Component Type | Single Lever SMT Housing |
| Series | 93601 |
| IP Rating | IP66 |
| Thread Size | M25 |
| Material - Housing | Die-cast Aluminum |
| Thread Type | Metric |
| Component Size | 10A «49X16» |
| CSA | 256883 |
| Type | STD |
| Number of Levers | 1 |
| Lock to Mating Part | Yes |
| Standard | ANSI, ANSI 50 E C22.2 No.94-1-2 61984, CSA, EN, UL, UL 50 |
| UL | E249674 |
| Product Name | GWconnect |
| Housing Coating | Polyester Powder |
| Material - Lever | Stainless Steel |
| Package Quantity | 1 |
