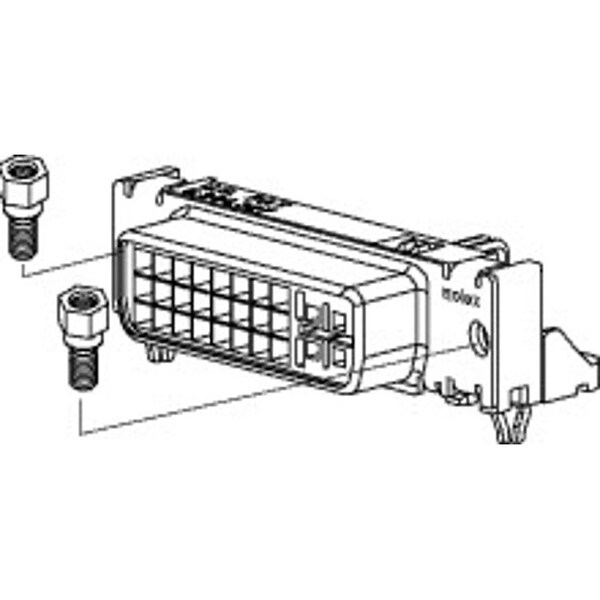

Conectores HDMI, DisplayPort y DVI de 29 pines para montaje en panel a través de orificio en PCB de 90 grados.
| Color | Natural |
|---|---|
| Max. Voltage | 40 V AC |
| Application | Wire-to-Board |
| Series | 74320 |
| Standards | UL E29179 |
| Material | Alloy |
| Hole Center to Center | 1.9 mm |
| Max. Temp. | 85 deg C |
| Connector Type | Receptacle |
| Number of Ports | 1 |
| Terminal Type | Through Hole |
| Terminal Finish | Tin Plated |
| Current Rating | 3 A |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.762 µm |
| Number of Rows | 3 |
| Contact Finish | Gold Plated |
| Number of Contacts | 29 |
| Circuits (Loaded) | 29 |
| Product Name | MicroCross DVI |
| PCB Locator | Yes |
| Grounding to Panel | Yes |
| Current - Maximum per Contact | 3 A |
| UL | E29179 |
| Orientation | Right Angle |
| Polarized to Mating Part | Yes |
| Flammability | 94 V to 0 |
| Keying to Mating Part | Yes |
| Lock to Mating Part | Yes |
| Panel Mount | Yes |
| PCB Retention | Yes |
| Polarized to PCB | Yes |
| Shield Type | Full Shield |
| Durability (mating cycles max) | 100 |
| Voltage - Maximum | 40 V |
| Waterproof / Dustproof | No |
| PC Tail Length | 2.34 mm |
| Plating min - Mating | 0.762 um |
| Material - Plating Termination | Tin |
| Temperature Range - Operating | -20° to +85°C |
| Shielded | Yes |
| Material - Plating Mating | Gold |
| Pitch - Mating Interface | 1.9 mm |
| Package Quantity | 1 |
