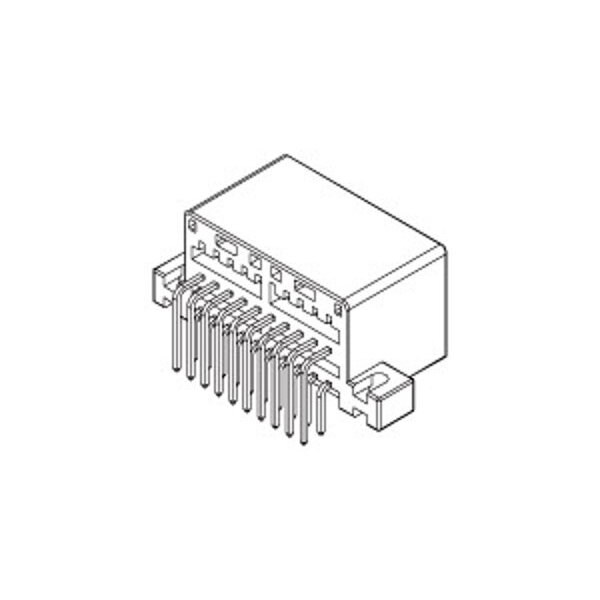

Cabezales y carcasas de cables 040 con 20 pines de ensamblaje de cabeza / ensamblaje de cabeza de 20 pines HZT.
| Number of Rows | 2 |
|---|---|
| Series | 68151 |
| Application | Power, Wire to-Board |
| PCB Retention | Yes |
| Current - Maximum per Contact | 5 A |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Durability (mating cycles max) | 50 |
| Plating min - Mating | 0.813 um |
| Color - Resin | Gray |
| Material - Metal | Brass |
| Lock to Mating Part | Yes |
| Termination Interface Style | Through Hole |
| Component Type | PCB Header |
| Keying to Mating Part | None |
| Orientation | Right Angle |
| Glow-Wire Capable | No |
| PC Tail Length | 4 mm |
| Voltage - Maximum | 12 V |
| Guide to Mating Part | No |
| First Mate / Last Break | No |
| PCB Locator | Yes |
| Breakaway | No |
| Material - Resin | Polyester |
| Circuits (Loaded) | 20 |
| PCB Thickness - Recommended | 1.6 mm |
| Shrouded | Partial |
| Pitch - Mating Interface | 2.5 mm |
| Temperature Range - Operating | -30° to +85°C |
| Stackable | No |
| Package Quantity | 1 |
