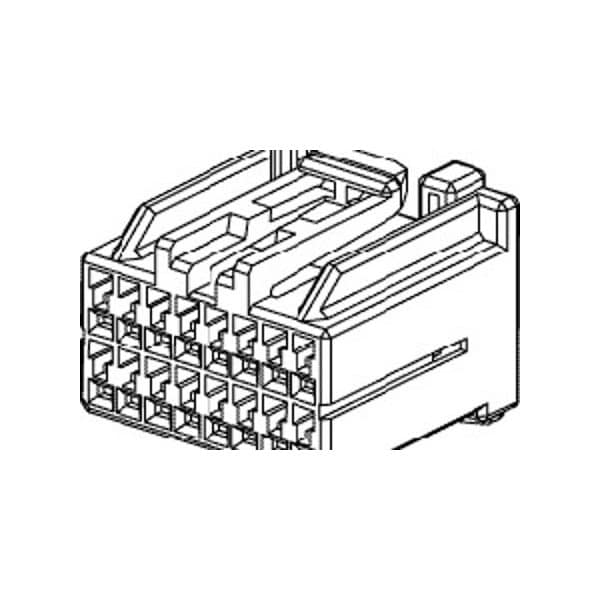

Headers & Wire Housings 040 W/B Female Assy- W/B Female Assy-16P
| Number of Rows | 2 |
|---|---|
| Series | 35563 |
| Application | Power, Wire to-Board |
| Keying to Mating Part | None |
| Glow-Wire Capable | No |
| Lock to Mating Part | No |
| Color - Resin | Natural, Gray |
| Circuits (maximum) | 16 |
| Temperature Range - Operating | -30° to +85°C |
| Current - Maximum per Contact | 10 A |
| Stackable | No |
| Gender | Receptacle |
| Pitch - Mating Interface | 2.5 mm |
| Material - Resin | Polyester |
| Package Quantity | 1 |
