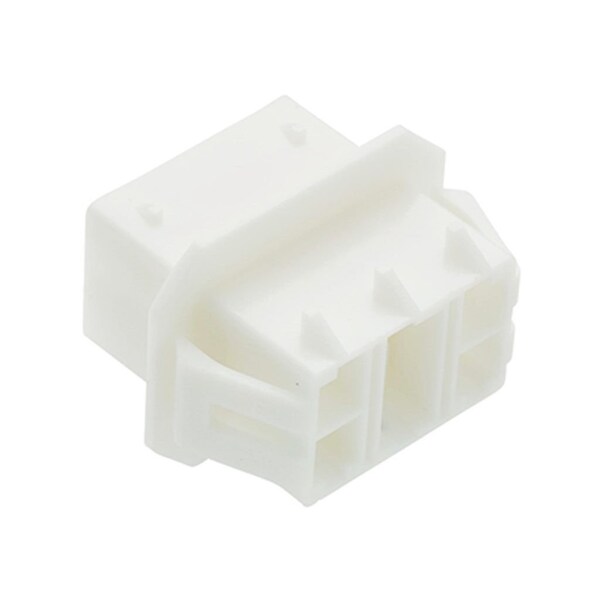

Conectores y carcasas de alambre Molex 070 Multi W/W Macho H Macho Hsg-6 351800600. Producto de alta calidad para conexiones eléctricas.
| Number of Rows | 2 |
|---|---|
| Breakaway | No |
| Keying to Mating Part | None |
| Gender | Receptacle |
| UL | E29179 |
| Temperature Range - Operating | -40° to +120°C |
| Application | Power, Wire-to-Wire |
| CSA | LR19980 |
| Flammability | 94V-0 |
| Panel Mount | Yes |
| Series | 35180 |
| Material - Resin | PBT |
| Lock to Mating Part | Yes |
| Glow-Wire Capable | No |
| Product Name | VersaBlade |
| Pitch - Mating Interface | 8 mm, 8.5 mm |
| Circuits (maximum) | 6 |
| Stackable | No |
| Polarized to Mating Part | Yes |
| Color - Resin | Natural |
| Package Quantity | 1 |
