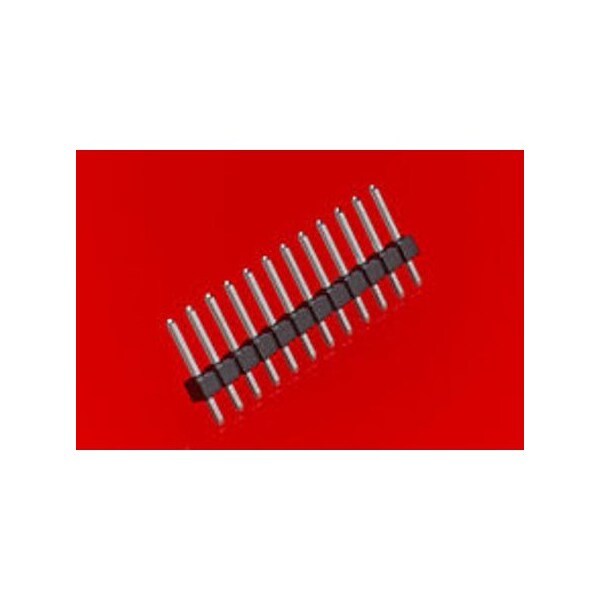

Encabezados y carcasas de alambre 100 Kk Bkwy Hdr Str Y Hdr Str 30Sau 2Ckt
| Application | Board-to-Board, Signal, Wire-to-Board |
|---|---|
| Series | 42375 |
| Breakaway | Yes |
| Material - Resin | High Temperature Thermoplastic |
| Flammability | 94 V to 0 |
| Material - Plating Mating | Gold |
| Current - Maximum per Contact | 4 A |
| PCB Locator | No |
| PC Tail Length | 3.05 mm |
| Durability (mating cycles max) | 100 |
| Glow-Wire Capable | No |
| Polarized to Mating Part | No |
| Product Name | KK 254 |
| Shrouded | No |
| Polarized to PCB | No |
| First Mate / Last Break | No |
| UL | E29179 |
| Stackable | No |
| PCB Thickness - Recommended | 1.6 mm |
| Orientation | Vertical |
| Component Type | PCB Header |
| CSA | LR19980 |
| Guide to Mating Part | No |
| PCB Retention | None |
| Lock to Mating Part | None |
| Keying to Mating Part | None |
| Number of Rows | 1 |
| Circuits (Loaded) | 2 |
| Termination Interface Style | Through Hole |
| Material - Metal | Brass |
| Color - Resin | Black |
| Pitch - Mating Interface | 2.54 mm |
| Temperature Range - Operating | See Product Specification |
| Voltage - Maximum | 500 V |
| Plating min - Mating | 0.762 um |
| Material - Plating Termination | Tin |
| Package Quantity | 1 |
