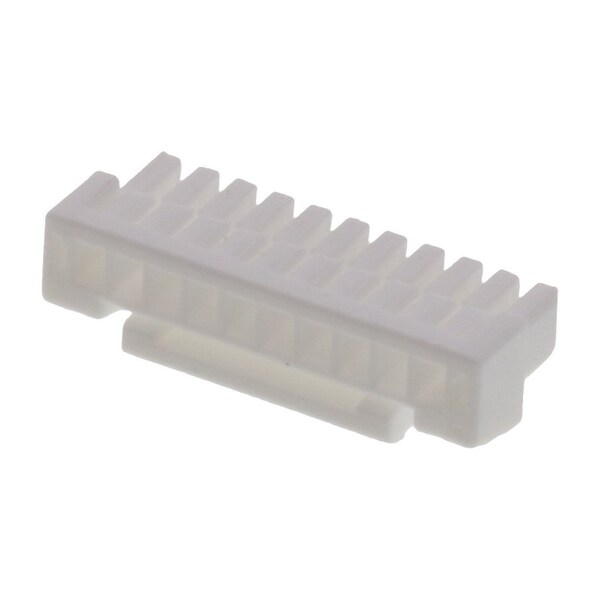

Conectores y carcasas de cable Molex de 1.25 W/B Single Rec Hsg 10P. Ideal para aplicaciones técnicas que requieren conexiones seguras y confiables.
| Number of Rows | 1 |
|---|---|
| Application | Wire-to-Board |
| Material - Resin | Polyester |
| Circuits (maximum) | 10 |
| Current - Maximum per Contact | 1.5 A |
| Temperature Range - Operating | -25° to +85°C |
| Gender | Receptacle |
| Lock to Mating Part | Yes |
| Series | 504193 |
| Polarized to Mating Part | Yes |
| Product Name | Micro-Lock |
| Pitch - Mating Interface | 1.25 mm |
| Color - Resin | White |
| Glow-Wire Capable | No |
| Package Quantity | 1 |
