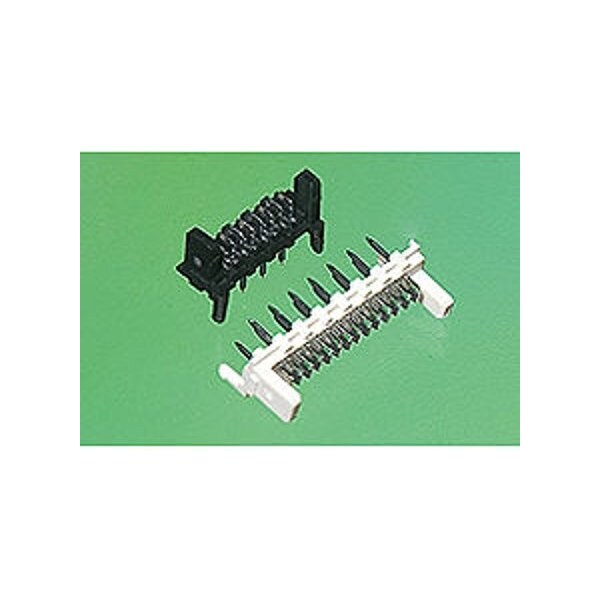

Headers & Wire Housings 1.27Mm Pf Hdr Lopro Ro Ht Nat .76Au 8Ckt
| Color | Natural |
|---|---|
| Max. Voltage | 250 V |
| Application | Signal, Wire-to-Board |
| Series | 90779 |
| Standards | UL E29179 |
| Hole Center to Center | 1.27 mm |
| Material | High Temperature Thermoplastic |
| Terminal Type | Through Hole |
| Max. Temp. | 230 deg C |
| Features | Glow-Wire Capable; Surface Mount Compatible |
| Current Rating | 1.2 A |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Contact Finish | Gold |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.762 µm |
| Component Type | PCB Header |
| Keying to Mating Part | None |
| Circuits (Loaded) | 8 |
| Product Name | Picoflex |
| Polarized to PCB | Yes |
| Material - Resin | High Temperature Thermoplastic |
| First Mate / Last Break | No |
| PCB Retention | Yes |
| Stackable | No |
| Flammability | 94 V to 0 |
| Material - Metal | Brass |
| Max-Duration | 5 |
| Pitch - Mating Interface | 1.27 mm |
| Guide to Mating Part | No |
| Polarized to Mating Part | Yes |
| Plating min - Mating | 0.762 um |
| Orientation | Vertical |
| Breakaway | No |
| PCB Locator | Yes |
| Current - Maximum per Contact | 1.2 A |
| Lock to Mating Part | Yes |
| UL | E29179 |
| Durability (mating cycles max) | 100 |
| Max-Temp | 230 |
| Glow-Wire Capable | Yes |
| Shrouded | No |
| PCB Thickness - Recommended | 1.6 mm |
| Temperature Range - Operating | -40° to +105°C |
| Package Quantity | 1 |
