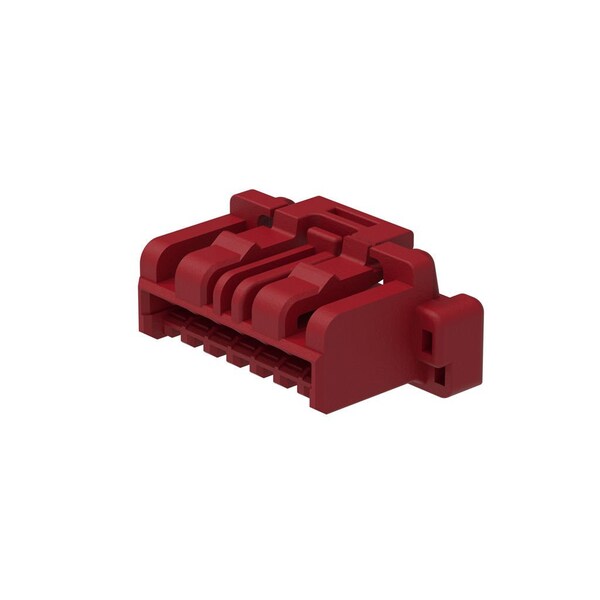

Headers & Wire Housings 1.5Mm Clik-Mate Plug Housing Sr 3Ckt Red
| Color | Red |
|---|---|
| Number of Rows | 1 |
| Series | 502578 |
| Application | Signal, Wire-to-Board |
| Material | PBT |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 1.5 mm |
| Standards | UL E29179 |
| Connector Type | Plug |
| Flammability Rating | SC-0 |
| Number of Contacts | 3 |
| Keying to Mating Part | None |
| UL | E29179 |
| Lock to Mating Part | Yes |
| Product Name | CLIK-Mate |
| Stackable | No |
| Temperature Range - Operating | -40° to +105°C |
| Pitch - Mating Interface | 1.5 mm |
| Glow-Wire Capable | No |
| Polarized to Mating Part | Yes |
| Circuits (maximum) | 3 |
| Material - Resin | PBT |
| Package Quantity | 1 |
