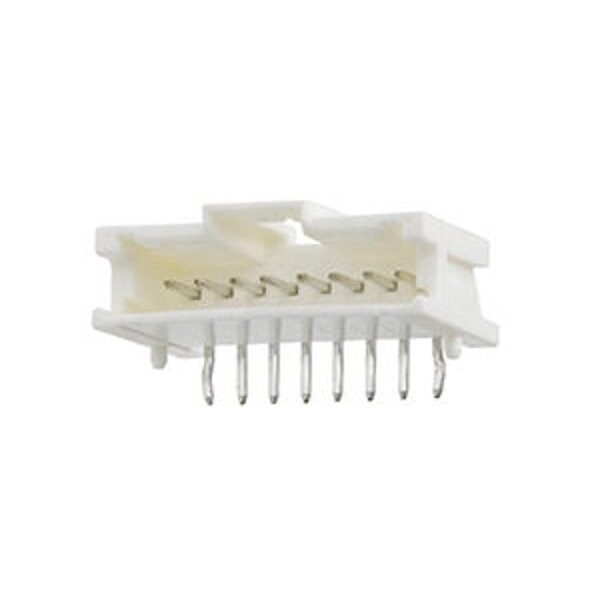

Headers & Wire Housings 2.0 Wtb Plg Hsg Assy Plg Hsg Assy Ra 6Ckt
| Color | Natural |
|---|---|
| Number of Rows | 1 |
| Series | 55935 |
| Max. Voltage | 250V AC/DC |
| Application | Signal, Wire-to-Board |
| Hole Center to Center | 2 mm |
| Max. Temp. | 105 deg C |
| Material | Polyester |
| Standards | UL E29179 |
| Terminal Type | Through Hole |
| Terminal Finish | Tin Plated |
| Number of Contacts | 6 |
| Flammability Rating | UL 94V-0 |
| Current Rating | 3 A |
| Contact Finish | Tin Plated |
| Current - Maximum per Contact | 3 A |
| Lock to Mating Part | Yes |
| Durability (mating cycles max) | 30 |
| PCB Locator | No |
| Keying to Mating Part | None |
| Product Name | MicroClasp |
| Material - Resin | Polyester |
| Circuits (Loaded) | 6 |
| PCB Retention | Yes |
| PC Tail Length | 3.2 mm |
| First Mate / Last Break | No |
| UL | E29179 |
| Component Type | PCB Header |
| Breakaway | No |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Temperature Range - Operating | -40° to +105°C |
| Pitch - Mating Interface | 2 mm |
| Flammability | 94V-0 |
| Guide to Mating Part | No |
| Material - Plating Termination | Tin |
| Glow-Wire Capable | No |
| Stackable | No |
| Shrouded | Fully |
| Orientation | Right Angle |
| PCB Thickness - Recommended | 1.6 mm |
| Material - Plating Mating | Tin |
| Package Quantity | 1 |
