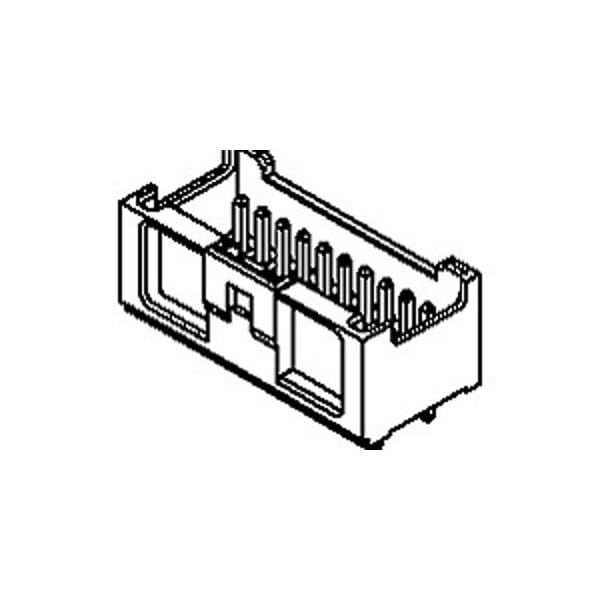

Encabezados y carcasas de cable Molex de 2.00mm (.079) Paso de Microclasp Wire-To-Board, doble hilera, vertical, 18. Este producto es ideal para conectar cables a placas de circuito impreso de manera segura y confiable.
| Number of Rows | 2 |
|---|---|
| Series | 501844 |
| Application | Signal, Wire-to-Board |
| Voltage - Maximum | 250 V |
| Component Type | PCB Header |
| Product Name | MicroClasp |
| Orientation | Vertical |
| Guide to Mating Part | No |
| Material - Resin | Polyester |
| Polarized to PCB | Yes |
| Stackable | No |
| Breakaway | No |
| Polarized to Mating Part | Yes |
| PCB Retention | None |
| Pitch - Mating Interface | 2 mm |
| Keying to Mating Part | None |
| Circuits (Loaded) | 18 |
| Material - Plating Mating | Tin |
| Lock to Mating Part | Yes |
| Color - Resin | Natural |
| Durability (mating cycles max) | 30 |
| PCB Locator | Yes |
| Shrouded | Fully |
| PCB Thickness - Recommended | 1.6 mm |
| PC Tail Length | 3.2 mm |
| Temperature Range - Operating | -25° to +85°C |
| First Mate / Last Break | No |
| Termination Interface Style | Through Hole |
| Current - Maximum per Contact | 3 A |
| Glow-Wire Capable | No |
| Package Quantity | 1 |
