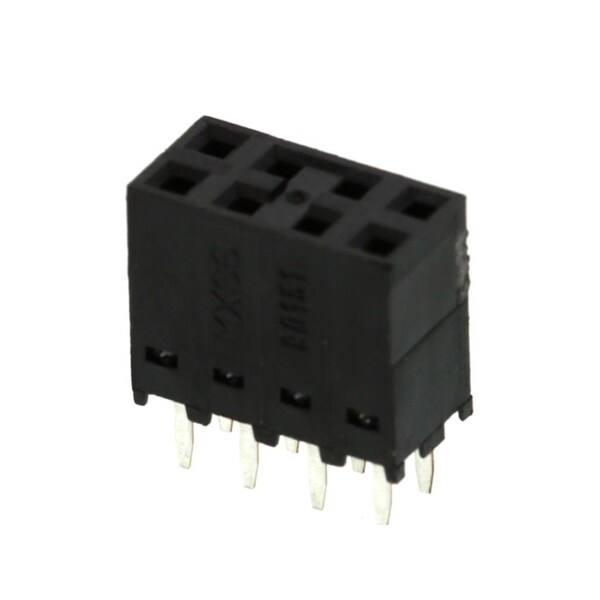

Headers & Wire Housings C-Grid Pcb Conn Dr V Conn Dr Vt Tn-A 8Ckt
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 90151 |
| Max. Voltage | 350 V |
| Application | Board-to-Board, Signal |
| Material | Polyester |
| Standards | UL E29179 |
| Hole Center to Center | 2.54 mm |
| Terminal Type | Through Hole |
| Sub-Category | PCB Receptacles |
| Max. Temp. | 125 deg C |
| Contact Plating Thickness | 1.016 um |
| Number of Contacts | 8 |
| Flammability Rating | UL 94HB |
| Terminal Finish | Tin Plated |
| Contact Finish | Tin Plated |
| Current Rating | 3 A |
| PCB Retention | None |
| Guide to Mating Part | No |
| Polarized to PCB | No |
| Grounding to PCB | No |
| Current - Maximum per Contact | 3 A |
| Material - Plating Termination | Tin |
| PCB Locator | No |
| UL | E29179 |
| Material - Plating Mating | Tin |
| Material - Resin | Polyester |
| Lock to Mating Part | No |
| Glow-Wire Capable | No |
| Stackable | Yes |
| Circuits (Loaded) | 8 |
| Component Type | PCB Receptacle |
| PC Tail Length | 2.9 mm |
| Pitch - Mating Interface | 2.54 mm |
| Durability (mating cycles max) | 30 |
| PCB Thickness - Recommended | 0.8 mm, 1.7 mm |
| Flammability | 94HB |
| Product Name | C-Grid |
| Plating min - Mating | 1.016 um |
| Temperature Range - Operating | -55° to +125°C |
| Material - Metal | Phosphor Bronze |
| Orientation | Vertical |
| Keying to Mating Part | None |
| Package Quantity | 1 |
