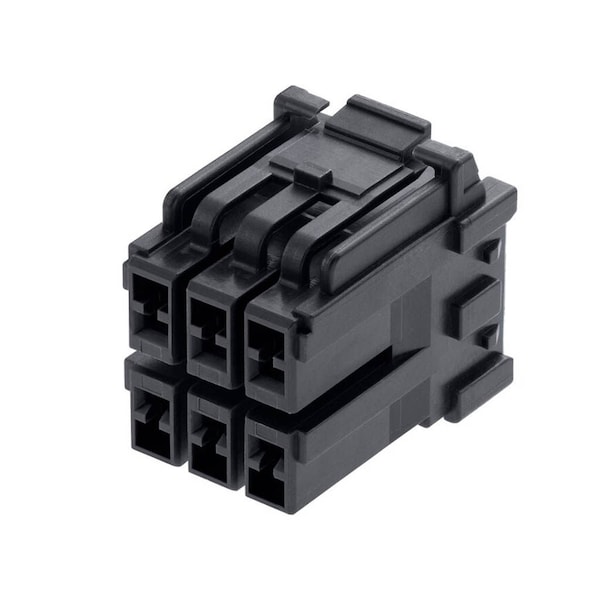

Headers & Wire Housings Cp3.3 Rcp Hsg 3.30Mm Dr Pslck Gw 2Ckt Bl
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 212209 |
| Application | Power, Wire to-Board |
| Standards | UL E29179 |
| Material | Polyamide |
| Connector Type | Receptacle |
| Hole Center to Center | 3.3 mm |
| Max. Temp. | 105 deg C |
| Features | Glow-Wire Capable |
| Number of Contacts | 2 |
| Flammability Rating | UL 94V-0 |
| Temperature Range - Operating | -40° to +105°C |
| Flammability | 94V-0 |
| Pitch - Mating Interface | 3.3 mm |
| Material - Resin | Polyamide |
| Glow-Wire Capable | Yes |
| UL | E29179 |
| Lock to Mating Part | Yes |
| Product Name | CP-3.3 |
| Keying to Mating Part | Yes |
| Circuits (maximum) | 2 |
| Polarized to Mating Part | Yes |
| Package Quantity | 1 |
