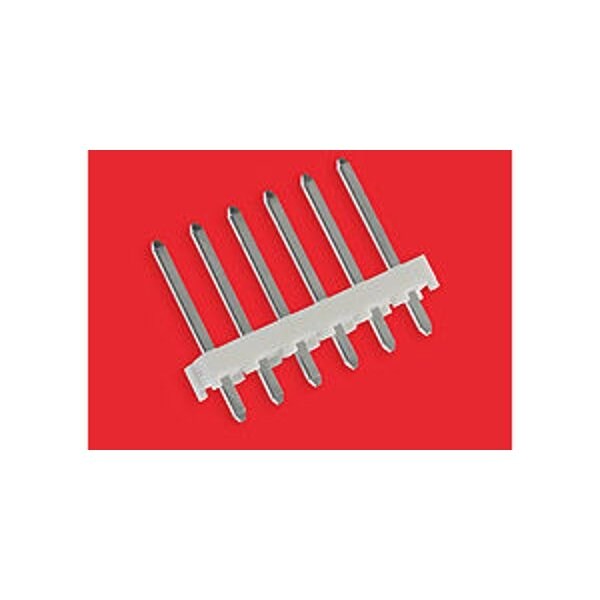

Encabezados y carcasas de cables Kk 156 Ensamblaje Hdr 20 G Ensamblaje 20 dorado 03 Ckt
| Color | Natural |
|---|---|
| Max. Voltage | 250 V |
| Application | Board-to-Board, Power, Wire-to-Board |
| Series | 41771 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 235 deg C |
| Hole Center to Center | 3.96 mm |
| Terminal Type | Through Hole |
| Material | Polyester |
| Current Rating | 7 A |
| Contact Finish | Gold Plated |
| Number of Rows | 1 |
| Number of Contacts | 3 |
| Terminal Finish | Matte Tin Plated |
| Flammability Rating | UL 94V-0 |
| Temperature Range - Operating | See Product Specification |
| PCB Retention | None |
| Current - Maximum per Contact | 7 A |
| Polarized to PCB | No |
| Glow-Wire Capable | No |
| Material - Plating Mating | Gold |
| PCB Locator | No |
| Orientation | Vertical |
| Stackable | Yes |
| Material - Plating Termination | Matte Tin |
| Durability (mating cycles max) | 50 |
| Component Type | PCB Header |
| CSA | LR19980 |
| Product Name | KK 396 |
| Flammability | 94 V to 0 |
| Max-Temp | 235 |
| Breakaway | No |
| Max-Duration | 5 |
| Circuits (Loaded) | 3 |
| Material - Metal | Brass |
| Lock to Mating Part | None |
| UL | E29179 |
| PC Tail Length | 3.56 mm |
| Pitch - Mating Interface | 3.96 mm |
| Shrouded | Partial |
| PCB Thickness - Recommended | 1.6 mm |
| Polarized to Mating Part | Yes |
| Material - Resin | Polyester |
| Package Quantity | 1 |
