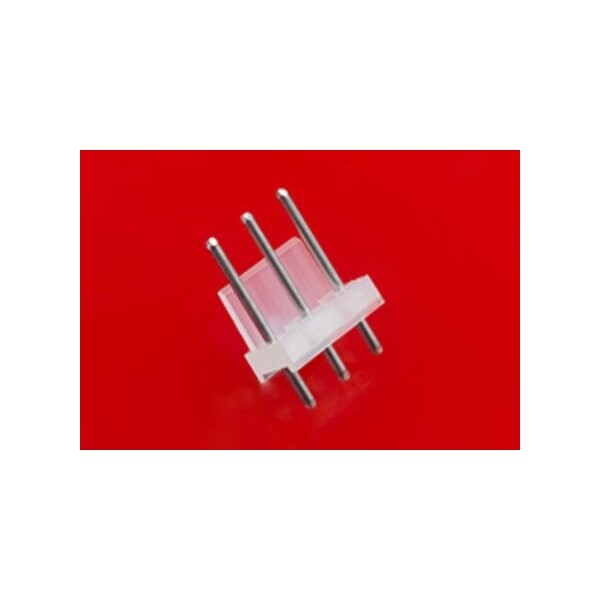

Headers & Wire Housings Kk200 Pol Wafer Ass Wafer Ass 2599M07A04
| Number of Rows | 1 |
|---|---|
| Series | 2599 |
| Application | Signal, Wire-to-Board |
| Temperature Range - Operating | See Product Specification |
| PCB Thickness - Recommended | 1.6 mm |
| First Mate / Last Break | No |
| Material - Plating Mating | Tin |
| Material - Metal | Brass |
| Circuits (Loaded) | 6 |
| Flammability | 94V-2 |
| Breakaway | No |
| Pitch - Mating Interface | 5.08 mm |
| Stackable | No |
| PCB Retention | None |
| Component Type | PCB Header |
| Max-Duration | 5 |
| Current - Maximum per Contact | 4.5 A |
| Color - Resin | Natural |
| Material - Resin | Nylon |
| Lock to Mating Part | None |
| PCB Locator | No |
| Voltage - Maximum | 250 V |
| UL | E29179 |
| Max-Cycle | 1 |
| Max-Temp | 235 |
| Polarized to PCB | No |
| Guide to Mating Part | No |
| Keying to Mating Part | None |
| Glow-Wire Capable | No |
| Polarized to Mating Part | Yes |
| Shrouded | Partial |
| Material - Plating Termination | Tin |
| Plating min - Mating | 5.08 um |
| Durability (mating cycles max) | 25 |
| PC Tail Length | 4.45 mm |
| Orientation | Vertical |
| Termination Interface Style | Through Hole |
| Product Name | KK 508 |
| Package Quantity | 1 |
