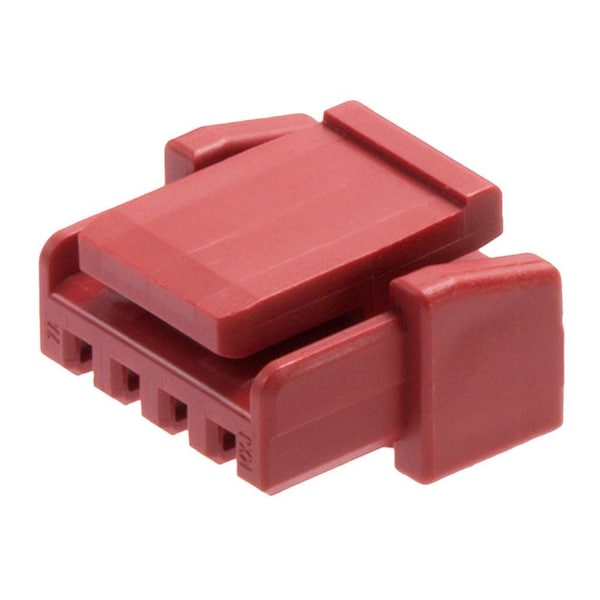

Headers & Wire Housings Micro-Lock Plus Receptacle Housing, 1.25Mm Pitch, Single Row, With Positive
| Number of Rows | 1 |
|---|---|
| Series | 505565 |
| Application | Signal, Wire-to-Wire, to-Board |
| UL | E29179 |
| Lock to Mating Part | Yes |
| Pitch - Mating Interface | 1.25 mm |
| Circuits (maximum) | 8 |
| Glow-Wire Capable | No |
| Color - Resin | Red |
| Product Name | Micro-Lock Plus |
| Material - Resin | PBT |
| Temperature Range - Operating | -40° to +105°C |
| Gender | Receptacle |
| Polarized to Mating Part | Yes |
| Keying to Mating Part | None |
| Package Quantity | 1 |
