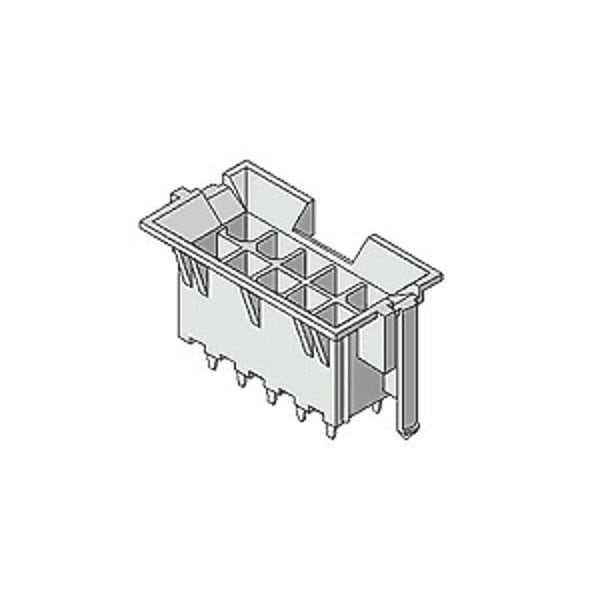

Encabezados y alojamientos de cable Minifit HCS VT HDR D. VT HDR DR V-2 18Ckt.
| Application | Board-to-Board, Power, Wire-to-Board |
|---|---|
| Series | 44474 |
| Material - Plating Mating | Tin |
| Component Type | PCB Header |
| PCB Locator | Yes |
| Shrouded | Fully |
| Product Name | Mini-Fit HCS |
| Max-Cycle | 1 |
| Breakaway | No |
| Orientation | Vertical |
| Pitch - Mating Interface | 4.2 mm |
| Number of Rows | 2 |
| Stackable | No |
| CSA | LR19980 |
| Max-Temp | 240 |
| Polarized to PCB | Yes |
| Plating min - Mating | 2.54 um |
| Current - Maximum per Contact | 11 A |
| PC Tail Length | 3.5 mm |
| Material - Metal | High Performance Alloy |
| Material - Resin | Nylon |
| Temperature Range - Operating | -40° to +105°C |
| Max-Duration | 5 |
| UL | E29179 |
| PCB Retention | Yes |
| Flammability | 94 V to 2 |
| Material - Plating Termination | Tin |
| PCB Thickness - Recommended | 1.8 mm |
| Color - Resin | Natural |
| Glow-Wire Capable | Yes |
| Voltage - Maximum | 600 V |
| Termination Interface Style | Through Hole |
| Circuits (Loaded) | 18 |
| Durability (mating cycles max) | 30 |
| Package Quantity | 1 |
