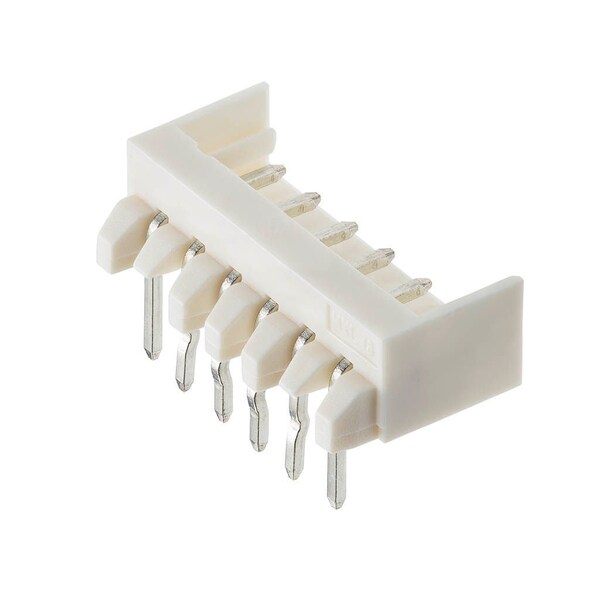

Headers & Wire Housings New 2.0 Wtb Wafer As Wafer Assy Ra 14Ckt
| Number of Rows | 1 |
|---|---|
| Series | 53254 |
| Max. Voltage | 125 V |
| Application | Signal, Wire-to-Board |
| Hole Center to Center | 2 mm |
| Material | Nylon |
| Terminal Type | Through Hole |
| Max. Temp. | 105 deg C |
| Standards | UL E29179 |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 1.016 um |
| Current Rating | 2 A |
| Contact Finish | Tin Plated |
| Number of Contacts | 14 |
| Polarized to PCB | No |
| Breakaway | No |
| Plating min - Mating | 1.016 um |
| PCB Retention | Yes |
| Orientation | Right Angle |
| Current - Maximum per Contact | 2 A |
| Stackable | No |
| Material - Plating Termination | Tin |
| PCB Thickness - Recommended | 1.6 mm |
| Circuits (Loaded) | 14 |
| Component Type | PCB Header |
| Glow-Wire Capable | No |
| Product Name | Micro-Latch |
| Temperature Range - Operating | -55° to +105°C |
| Shrouded | Partial |
| Durability (mating cycles max) | 30 |
| PCB Locator | No |
| Material - Metal | Brass |
| Voltage - Maximum | 250 V |
| Material - Resin | Nylon |
| PC Tail Length | 3.5 mm |
| Pitch - Mating Interface | 2 mm |
| First Mate / Last Break | No |
| Color - Resin | Natural |
| UL | E29179 |
| Polarized to Mating Part | Yes |
| Lock to Mating Part | Yes |
| Material - Plating Mating | Tin |
| Package Quantity | 1 |
