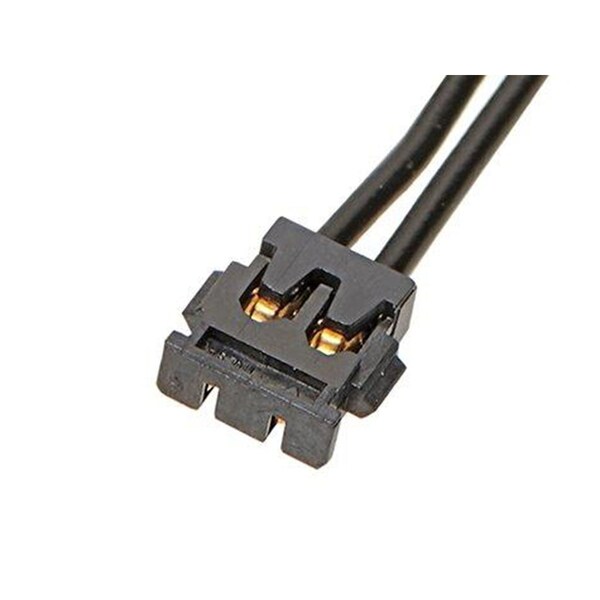

Cabezales y carcasas de cables Picoezmate 2 Circuit 600mm.
| Color | Black |
|---|---|
| Number of Rows | 1 |
| Series | 36920 |
| Max. Voltage | 50V AC/DC |
| Application | Signal, Wire-to-Board |
| Length | 600 mm |
| Type | Assembly |
| Terminal Type | Crimp, Compression |
| Connector Type | Female-Female |
| Max. Insulation Dia. | 0.7 mm |
| Material | Crystal Polymer |
| Hole Center to Center | 1.2 mm |
| Wire Range | 28 AWG |
| Current Rating | 1.5 A |
| Terminal Finish | Gold Plated |
| Contact Plating Thickness | 0.1 um |
| Contact Finish | Gold Plated |
| Number of Contacts | 2 |
| Overmolded | No |
| Material - Resin | Liquid Crystal Polymer |
| Voltage - Maximum | 50V AC (RMS)/DC |
| Circuits (Loaded) | 2 |
| Assembly Configuration | Dual Ended Connectors |
| Pitch - Mating Interface | 1.2 mm |
| Wire Size (AWG) | 28 |
| Material - Metal | Alloy |
| Current - Maximum per Contact | 1.5 A |
| Material - Plating Termination | Gold |
| Wire Insulation Diameter | 0.60-0.70mm |
| Plating min - Mating | 0.1 um |
| Material - Plating Mating | Gold |
| Single Ended | No |
| Lock to Mating Part | Yes |
| Cable Length | 600 mm |
| Wire/Cable Type | UL 1571 |
| Connector to Connector | Pico-EZmate-to-Pico-EZmate |
| Product Name | Pico-EZmate |
| Package Quantity | 1 |
