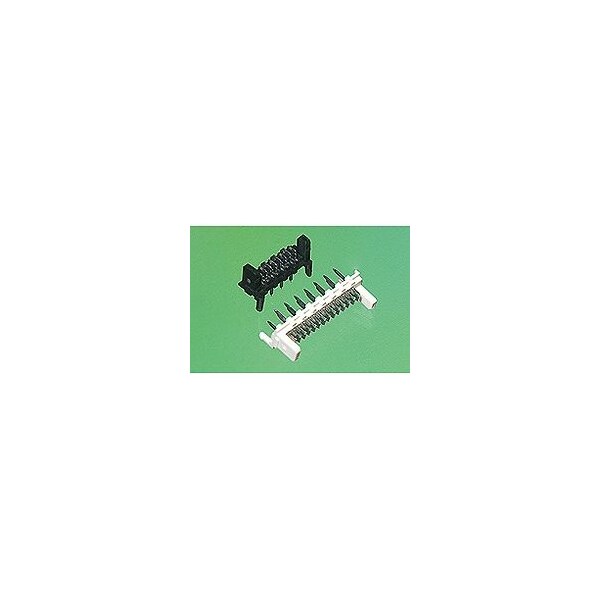

Headers & Wire Housings Picoflex 10P Hdr Au R/A Lp W/Pcb Pegs
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 90325 |
| Keying to Mating Part | None |
| Stackable | No |
| Breakaway | No |
| Polarized to Mating Part | Yes |
| Color - Resin | Black |
| Pitch - Mating Interface | 1.27 mm |
| Flammability | 94 V to 0 |
| Shrouded | No |
| Voltage - Maximum | 250 V |
| UL | E29179 |
| Circuits (Loaded) | 10 |
| Polarized to PCB | Yes |
| Guide to Mating Part | No |
| Material - Metal | Brass |
| Termination Interface Style | Through Hole |
| Lock to Mating Part | Yes |
| Glow-Wire Capable | No |
| First Mate / Last Break | No |
| Number of Rows | 1 |
| Durability (mating cycles max) | 100 |
| CSA | LR19980 |
| Temperature Range - Operating | -40° to +105°C |
| PCB Thickness - Recommended | 1.6 mm |
| Orientation | Vertical |
| Material - Resin | Polyester |
| Component Type | PCB Header |
| Current - Maximum per Contact | 1.2 A |
| PCB Retention | Yes |
| Material - Plating Mating | Gold |
| Product Name | Picoflex |
| Package Quantity | 1 |
