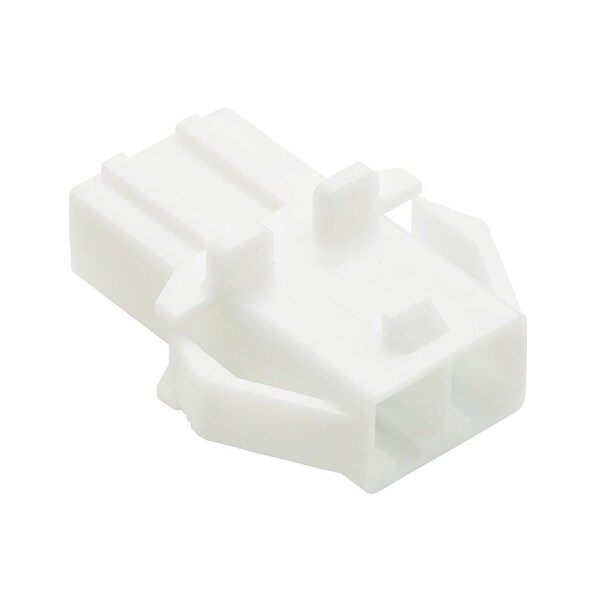

Headers & Wire Housings Versablade Hybrd Plg W/Mntears 2Ckt Gw
| Color | Natural |
|---|---|
| Number of Rows | 1 |
| Series | 35150 |
| Application | Power, Wire-to-Wire |
| Max. Temp. | 110 deg C |
| Features | Glow-Wire Capable |
| Material | PET, Polycarboncate |
| Connector Type | Receptacle |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 6.2 mm |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 2 |
| Breakaway | No |
| Polarized to Mating Part | Yes |
| Circuits (maximum) | 2 |
| Lock to Mating Part | Yes |
| Pitch - Mating Interface | 6.2 mm |
| UL | E29179 |
| CSA | LR19980 |
| Panel Mount | Yes |
| Stackable | No |
| Temperature Range - Operating | -40° to +110°C |
| Keying to Mating Part | None |
| Flammability | 94V-0 |
| Product Name | VersaBlade |
| Glow-Wire Capable | Yes |
| Material - Resin | PC, PET |
| Package Quantity | 1 |
