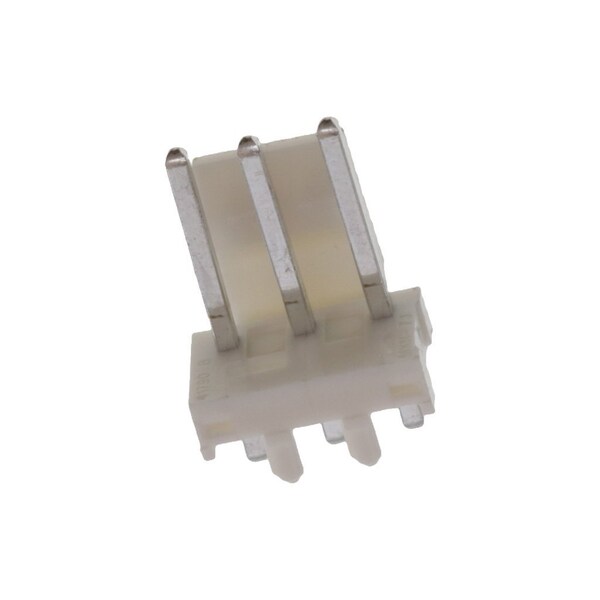

Headers & Wire Housings Vert Friction Lk 3P Press-Fit Pegs
| Number of Rows | 1 |
|---|---|
| Series | 42491 |
| Application | Power, Wire to-Board |
| Lock to Mating Part | Yes |
| Plating min - Mating | 5.08 um |
| Flammability | 94V-0 |
| PC Tail Length | 3.56 mm |
| Termination Interface Style | Through Hole |
| Material - Plating Mating | Tin |
| Max-Duration | 5 |
| Stackable | Yes |
| Orientation | Vertical |
| PCB Thickness - Recommended | 1.6 mm |
| Material - Plating Termination | Tin |
| Max-Cycle | 1 |
| Breakaway | No |
| Glow-Wire Capable | No |
| Pitch - Mating Interface | 3.96 mm |
| CSA | LR19980 |
| Temperature Range - Operating | See Product Specification |
| Durability (mating cycles max) | 25 |
| Polarized to Mating Part | Yes |
| PCB Locator | Yes |
| Current - Maximum per Contact | 7 A |
| Shrouded | Partial |
| Material - Metal | Brass |
| PCB Retention | Yes |
| Circuits (Loaded) | 3 |
| Max-Temp | 235 |
| Voltage - Maximum | 250 V |
| Polarized to PCB | Yes |
| Component Type | PCB Header |
| Product Name | KK 396 |
| UL | E29179 |
| Package Quantity | 1 |
