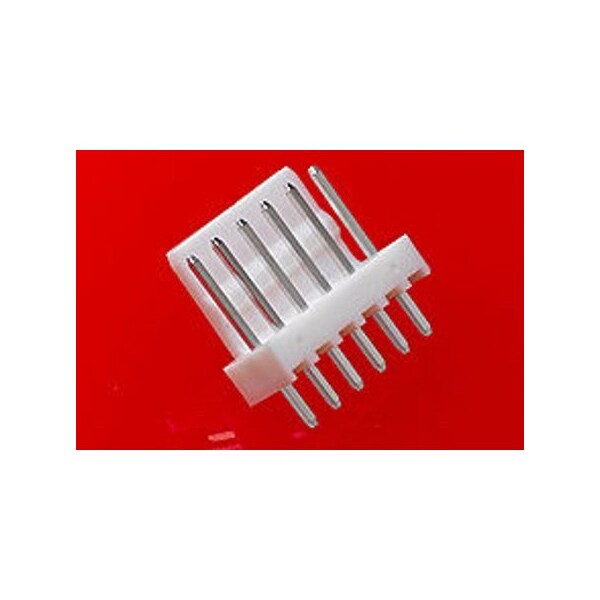

Headers & Wire Housings Wafer Assy Fr/Lk .10 Er Assy Fr/Lk .100In
| Number of Rows | 1 |
|---|---|
| Series | 6410 |
| Application | Signal, Wire-to-Board |
| Guide to Mating Part | No |
| Max-Duration | 5 |
| Max-Cycle | 1 |
| Lock to Mating Part | Yes |
| Product Name | KK 254 |
| Keying to Mating Part | None |
| First Mate / Last Break | No |
| Pitch - Mating Interface | 2.54 mm |
| Shrouded | Partial |
| Current - Maximum per Contact | 4 A |
| PCB Retention | None |
| PCB Locator | No |
| CSA | LR19980 |
| Material - Resin | Nylon |
| Polarized to PCB | No |
| Component Type | PCB Header |
| Color - Resin | Natural |
| Material - Plating Termination | Tin |
| Max-Temp | 235 |
| Orientation | Vertical |
| Flammability | 94V-0 |
| Polarized to Mating Part | Yes |
| Circuits (Loaded) | 4 |
| PCB Thickness - Recommended | 1.6 mm |
| Durability (mating cycles max) | 25 |
| Material - Metal | Brass |
| Temperature Range - Operating | See Product Specification |
| Breakaway | No |
| Plating min - Mating | 5.08 um |
| UL | E29179 |
| Glow-Wire Capable | No |
| Stackable | No |
| Voltage - Maximum | 500 V |
| PC Tail Length | 10 mm |
| Termination Interface Style | Through Hole |
| Material - Plating Mating | Tin |
| Package Quantity | 1 |
