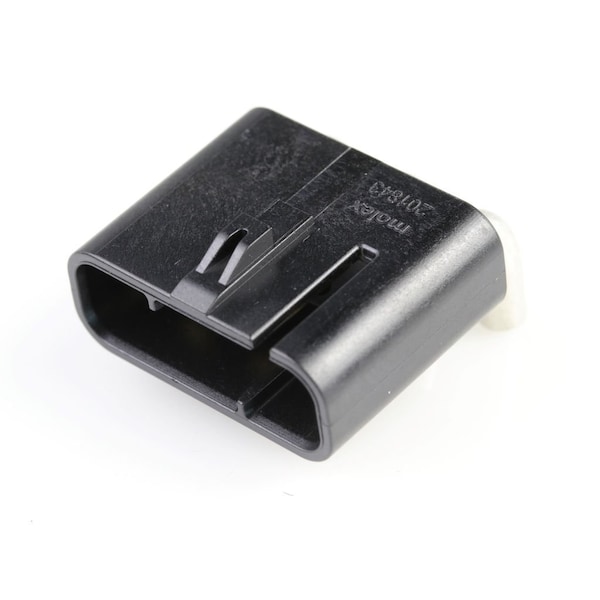

Heavy Duty Power Connectors Multicat R/A Header 3 Circ Blk Key A
| Color | Black |
|---|---|
| Max. Voltage | 1000V AC/DC |
| Application | Power, Wire to-Board |
| Series | 201843 |
| Standards | UL E29179 |
| Material | PEI |
| Max. Temp. | 150 deg C |
| Hole Center to Center | 7.4 mm |
| Terminal Type | Through Hole |
| Terminal Finish | Tin Plated |
| Current Rating | 40 A |
| Number of Contacts | 3 |
| Contact Plating Thickness | 0.102 µm |
| Number of Rows | 1 |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Gold Plated |
| Glow-Wire Capable | No |
| Current - Maximum per Contact | 40 A |
| Circuits (Loaded) | 3 |
| Durability (mating cycles max) | 500 |
| First Mate / Last Break | No |
| Material - Metal | Copper Alloy |
| Temperature Range - Operating | -40° to +150°C |
| UL | E29179 |
| Guide to Mating Part | No |
| Pitch - Mating Interface | 7.4 mm |
| Material - Plating Termination | Tin |
| Product Name | MultiCat |
| Material - Plating Mating | Gold |
| Plating min - Mating | 0.102 um |
| Breakaway | No |
| Flammability | 94 V to 0 |
| Polarized to Mating Part | Yes |
| Orientation | Right Angle |
| Material - Resin | PEI |
| Keying to Mating Part | Yes |
| PCB Thickness - Recommended | 2.5 mm |
| Component Type | PCB Header |
| Shrouded | Yes |
| Polarized to PCB | Yes |
| Lock to Mating Part | Yes |
| Package Quantity | 1 |
