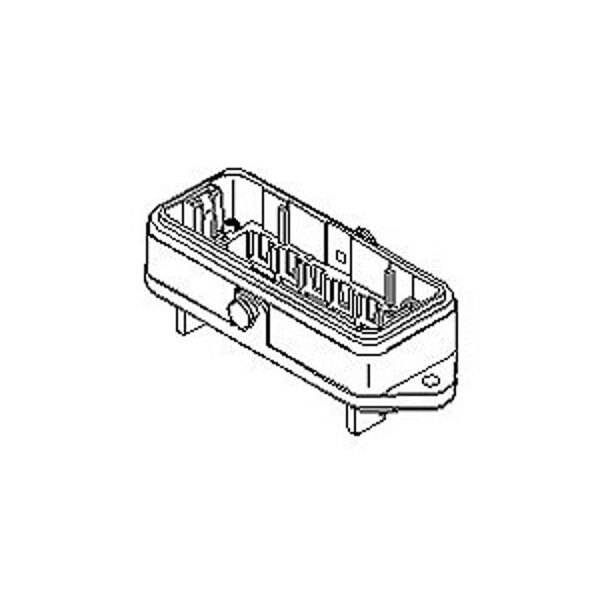

Heavy Duty Power Connectors Power Conn Shell Ass Ower Conn Shell Assy
| Series | 58691 |
|---|---|
| Max. Voltage | 250 V AC |
| Application | Panel-Mount |
| Material | Brass |
| IP Rating | IP65 |
| Number of Contacts | 36 |
| Max. Temp. | 125 deg C |
| Terminal Type | Surface Mount |
| Current Rating | 12 A |
| Contact Plating Thickness | 0.508 µm |
| Panel Mount | Screws |
| Durability (mating cycles max) | 50 |
| Material - Plating Mating | Copper |
| Circuits (Loaded) | 36 |
| Material - Plating Termination | Copper |
| Component Type | Panel-Mount Bracket |
| Lock to Mating Part | Yes |
| Orientation | Vertical |
| Waterproof / Dustproof | Yes |
| Product Name | HMC |
| Plating min - Mating | 0.508 um |
| Temperature Range - Operating | -55° to +125°C |
| Current - Maximum per Contact | 12 A |
| Polarized to Mating Part | Yes |
| Package Quantity | 1 |
