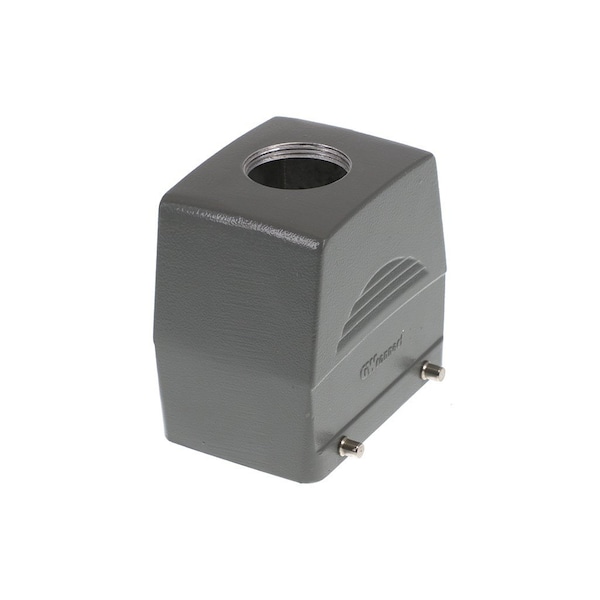

High Const.Hood Top Entry 4P.M32 No Tube
| Color | Gray |
|---|---|
| Series | 93601 |
| Max. Voltage | 500 V |
| Material | Aluminum |
| IP Rating | IP66 |
| Standards | CSA Certified; UL E249674 |
| Type | STD |
| Finish | Polyester Powder Coated |
| Number of Pegs | 4 |
| Component Size | 32A «66x40» |
| Hood Color | GREY RAL 7037 |
| UL | E249674 |
| Thread Size | M32 |
| Material - Peg | Stainless Steel |
| Entry Location | Top |
| Material - Hood | Die-cast Aluminum |
| Thread Type | Metric |
| Component Type | Double Lever Hood |
| Lock to Mating Part | Yes |
| Hood Coating | Polyester Powder |
| Standard | ANSI/UL 50, ANSI/UL 50 E, CSA C22.2 No.94-1-2, EN 61984 |
| CSA | 256883 |
| Product Name | GWconnect |
| Package Quantity | 1 |
