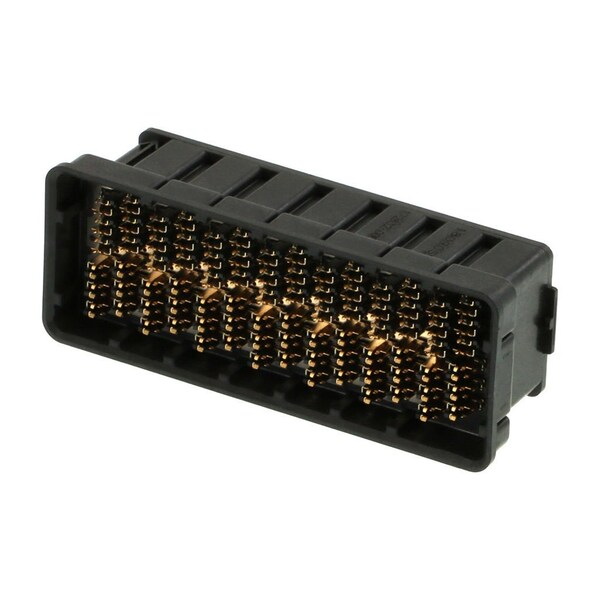

Receptáculo de alta velocidad de mezanine, paso de 3.50 mm, 6x14, 84 tríadas (252 circuitos)
| Material | Liquid Crystal Polymer |
|---|---|
| Max. Voltage | 30 V AC |
| Application | Board-to-Board, Signal |
| Color | Black |
| Series | 172832 |
| Standards | UL E29179 |
| Max. Temp. | 85 deg C |
| Terminal Finish | Tin |
| Terminal Type | Through Hole - Compliant Pin |
| Contact Finish | Gold |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 3.5 mm |
| Sub-Category | PCB Receptacles |
| Number of Rows | 6 |
| Contact Plating Thickness | 0.762 µm |
| Current Rating | 1 A |
| Number of Contacts | 252 |
| Lock to Mating Part | No |
| Guide to Mating Part | No |
| Stackable | Yes |
| Polarized to Mating Part | Yes |
| Durability (mating cycles max) | 100 |
| Material - Resin | Liquid Crystal Polymer |
| Temperature Range - Operating | -55° to +85°C |
| Material - Plating Termination | Tin |
| Grounding to PCB | No |
| Component Type | PCB Receptacle |
| Robotic Placement | None |
| Voltage - Maximum | 30 V |
| Polarized to PCB | Yes |
| Product Name | NeoPress |
| Orientation | Vertical |
| Plating min - Mating | 0.762 um |
| PC Tail Length | 1.38 mm |
| Current - Maximum per Contact | 1 A |
| Pitch - Mating Interface | 3.5 mm |
| Material - Plating Mating | Gold |
| Glow-Wire Capable | No |
| PCB Retention | None |
| PCB Locator | No |
| Material - Metal | High Performance Alloy |
| Keying to Mating Part | None |
| Circuits (Loaded) | 252 |
| Flammability | 94 V to 0 |
| UL | E29179 |
| Package Quantity | 1 |
