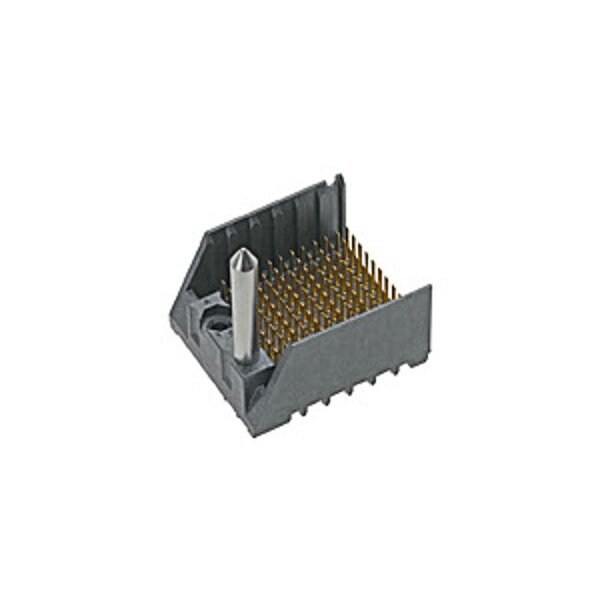

Conectores modulares de alta velocidad I-Trac 7 hilera Bp Assy - Guía de 4 columnas a la derecha
| Material | High Temperature Thermoplastic |
|---|---|
| Max. Voltage | 120V AC/DC |
| Color | Black |
| Standards | UL E29179 |
| Features | Surface Mount Compatible |
| Hole Center to Center | 1.85 mm, 3.7 mm (Mating Interface); 1 mm, 2.7 mm (Termination Interface) |
| Max. Temp. | 85 deg C |
| Terminal Type | Through Hole - Compliant Pin |
| Terminal Finish | Tin Plated |
| Contact Finish | Gold Plated |
| Number of Rows | 7 |
| Number of Contacts | 56 |
| Current Rating | 1 A |
| Contact Plating Thickness | 0.762 µm |
| Flammability Rating | UL 94V-0 |
| Package Quantity | 1 |
