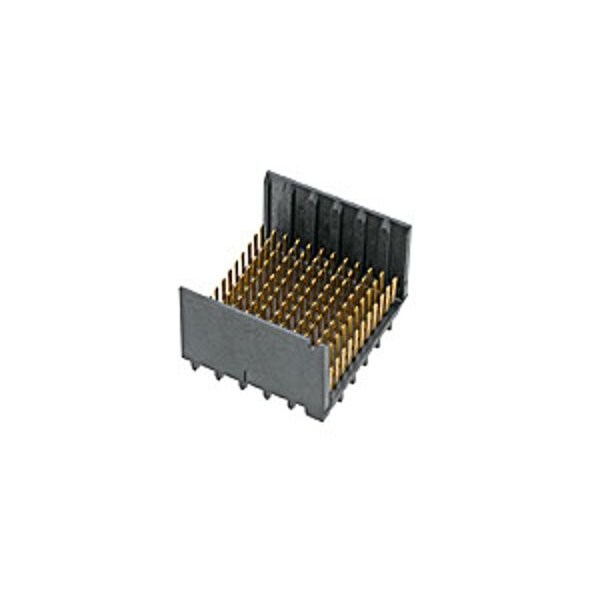

Conectores modulares de alta velocidad I-Trac de 7 filas con ensamblaje posterior P y ensamblaje en Bp - 10 columnas abiertas.
| Material | High Temperature Thermoplastic |
|---|---|
| Max. Voltage | 120V AC/DC |
| Application | Backplane, Midplane, Orthogonal |
| Series | 76015 |
| Color | Black |
| Standards | UL E29179 |
| Features | Surface Mount Compatible |
| Number of Contacts | 140 |
| Current Rating | 1 A |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.762 µm |
| Terminal Type | Through Hole - Compliant Pin |
| Number of Rows | 7 |
| Contact Finish | Gold Plated |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 1.85 mm, 3.7 mm (Mating Interface); 1 mm, 2.7 mm (Termination Interface) |
| Max. Temp. | 85 deg C |
| Data Rate | 12 Gbps |
| Polarized to PCB | No |
| Keying to Mating Part | None |
| Material - Plating Mating | Gold |
| Product Name | GbX I-Trac |
| Voltage - Maximum | 120V AC (RMS)/DC |
| Temperature Range - Operating | 85°C |
| Material - Metal | High Performance Alloy |
| PCB Thickness - Recommended | 1.6 mm |
| PCB Retention | None |
| PCB Locator | No |
| PC Tail Length | 2.1 mm |
| Material - Plating Termination | Tin |
| First Mate / Last Break | No |
| Circuits (Loaded) | 140 |
| Shielded | No |
| UL | E29179 |
| Number of Pairs | 4, Open Pin Field |
| Material - Resin | High Temperature Thermoplastic |
| Number of Columns | 10 |
| Stackable | Yes |
| Orientation | Vertical |
| Current - Maximum per Contact | 1 A |
| Plating min - Mating | 0.762 um |
| Guide to Mating Part | No |
| Component Type | PCB Header |
| Pitch - Mating Interface | 1.85 mm, 3.7 mm |
| Durability (mating cycles max) | 200 |
| Flammability | 94 V to 0 |
| Package Quantity | 1 |
